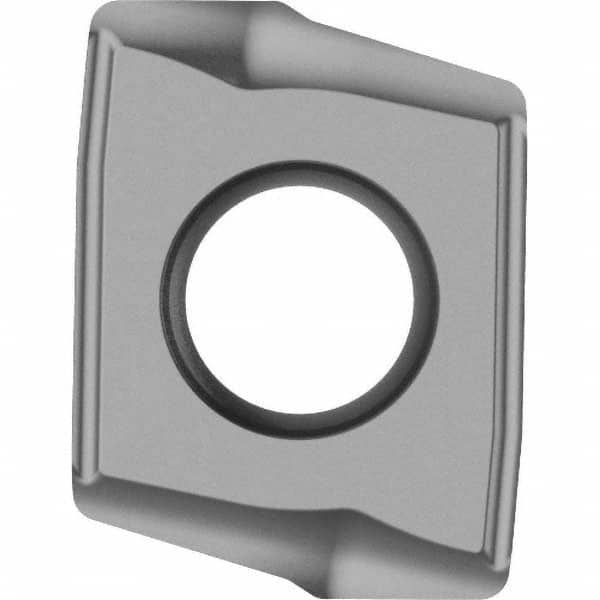

Allied Machine and Engineering - 4T030203 Carbide Indexable Drill Insert
Item #: 12330049
Brand: Allied Machine and Engineering
Model #: 4T-030203P-N
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | 4T |
| Insert Size | 030203 |
| Material | Carbide |
| Material Grade | K15/M15 |
| Inscribed Circle (mm) | 2.40 |
| Length (mm) | 4.80 |
| Width (mm) | 6.50 |
| Thickness (mm) | 2.30 |
| Corner Radius (mm) | 0.30 |
| Hole Diameter (mm) | 2.40 |
| Relief Angle | 7 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
