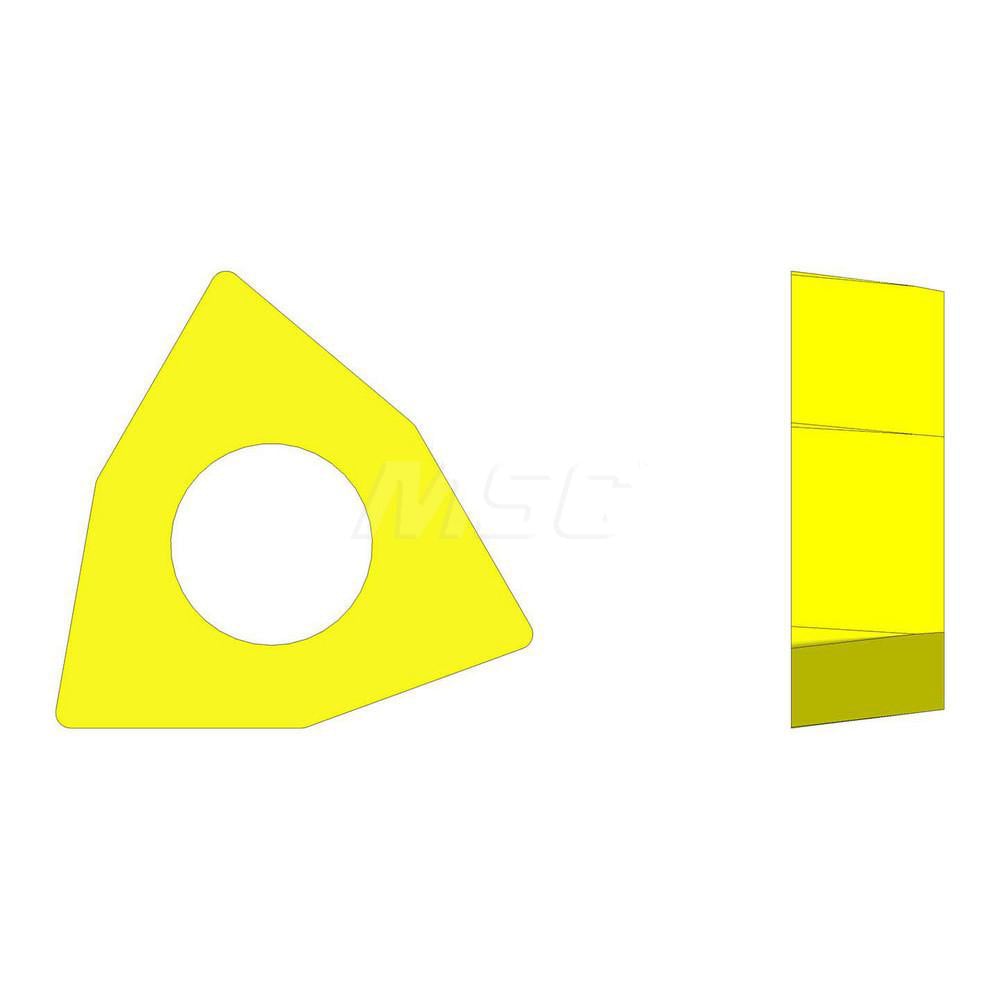

Turning Insert: WCMT 32.51 UD52, Carbide
Item #: 65351330
Brand: Ultra-Dex
Model #: 913-000-588
Product Specifications
| ANSI Insert Code | WCMT32.51 |
| ISO Insert Code | WCMT06T304 |
| Relief Angle | 7 |
| Insert Style | WCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Included Angle | 80 |
| Manufacturer Grade | UD52 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | WCMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Maximum Depth of Cut (Decimal Inch) | 0.0856 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5140 |
| Primary Workpiece Material | Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 913-000-588 |
| Chip Breaker | LX6 |
| Industry Standard Number | WCMT32.51 |
| Width (Decimal Inch - 4 Decimals) | 0.5140 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 32.51 |
| ISO Size Code | 06T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| ANSI Insert Code | WCMT32.51 |
| ISO Insert Code | WCMT06T304 |
| Relief Angle | 7 |
| Insert Style | WCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Included Angle | 80 |
| Manufacturer Grade | UD52 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | WCMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Maximum Depth of Cut (Decimal Inch) | 0.0856 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5140 |
| Primary Workpiece Material | Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 913-000-588 |
| Chip Breaker | LX6 |
| Industry Standard Number | WCMT32.51 |
| Width (Decimal Inch - 4 Decimals) | 0.5140 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 32.51 |
| ISO Size Code | 06T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| MSC Part # | 65351330 |
| Mfr Part # | 913-000-588 |
