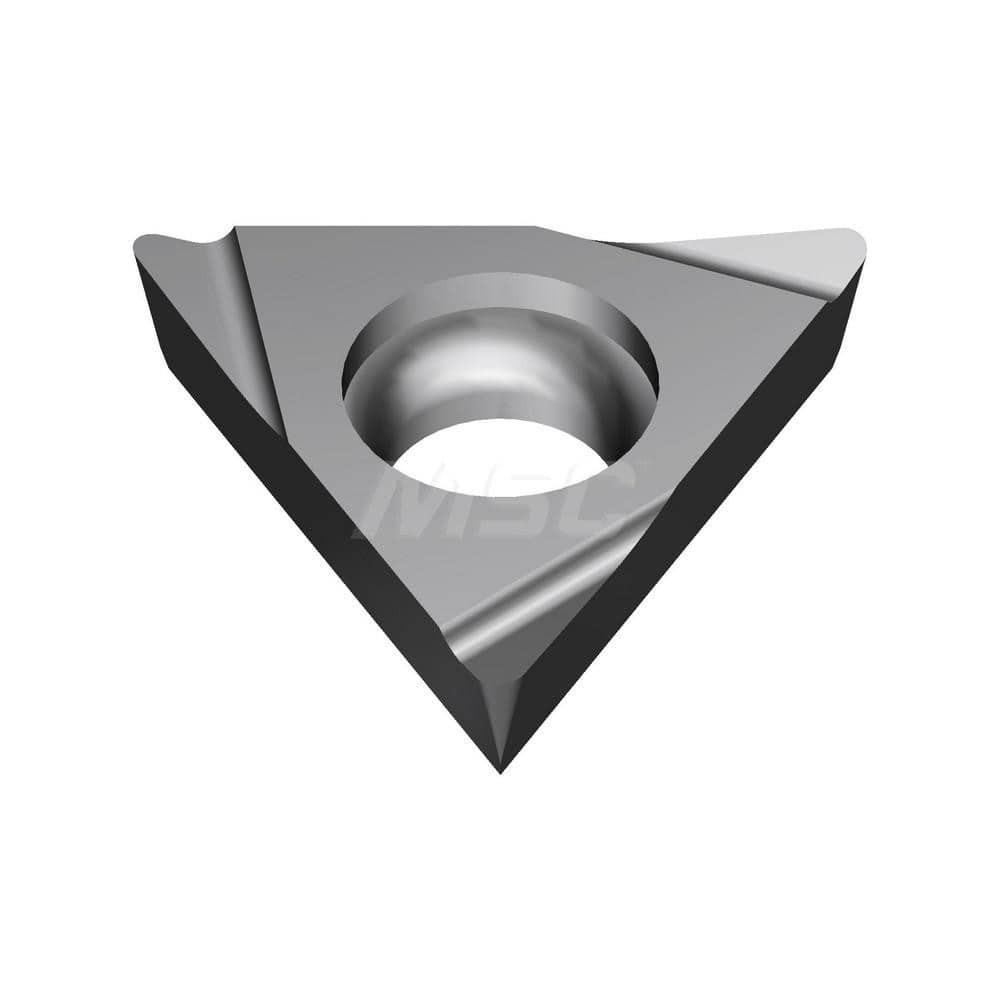

Turning Insert: TBGT520RAY H1, Solid Carbide Uncoated Finish, Right Hand, 60.0 ° N/A Triangle, Series H1
Item #: 23214885
Brand: Sumitomo
Model #: 1033AUJ
Product Specifications
| Insert Style | TBGT |
| Insert Size Code | 520 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | H1 |
| Hole Diameter (Decimal Inch) | 2.2000 |
| Inscribed Circle (mm) | 3.97 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness | 1.59 |
| Corner Radius (mm) | 0.10 |
| Included Angle | 60.0 |
| Relief Angle | 5 |
| Series | H1 |
| Rake | Positive |
| Insert Length (mm) | 6.90 |
| Primary Workpiece Material Code | K; N |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | TBGT520RAYH1 |
| Chip Breaker | RAY |
| Coating/Finish | Uncoated |
