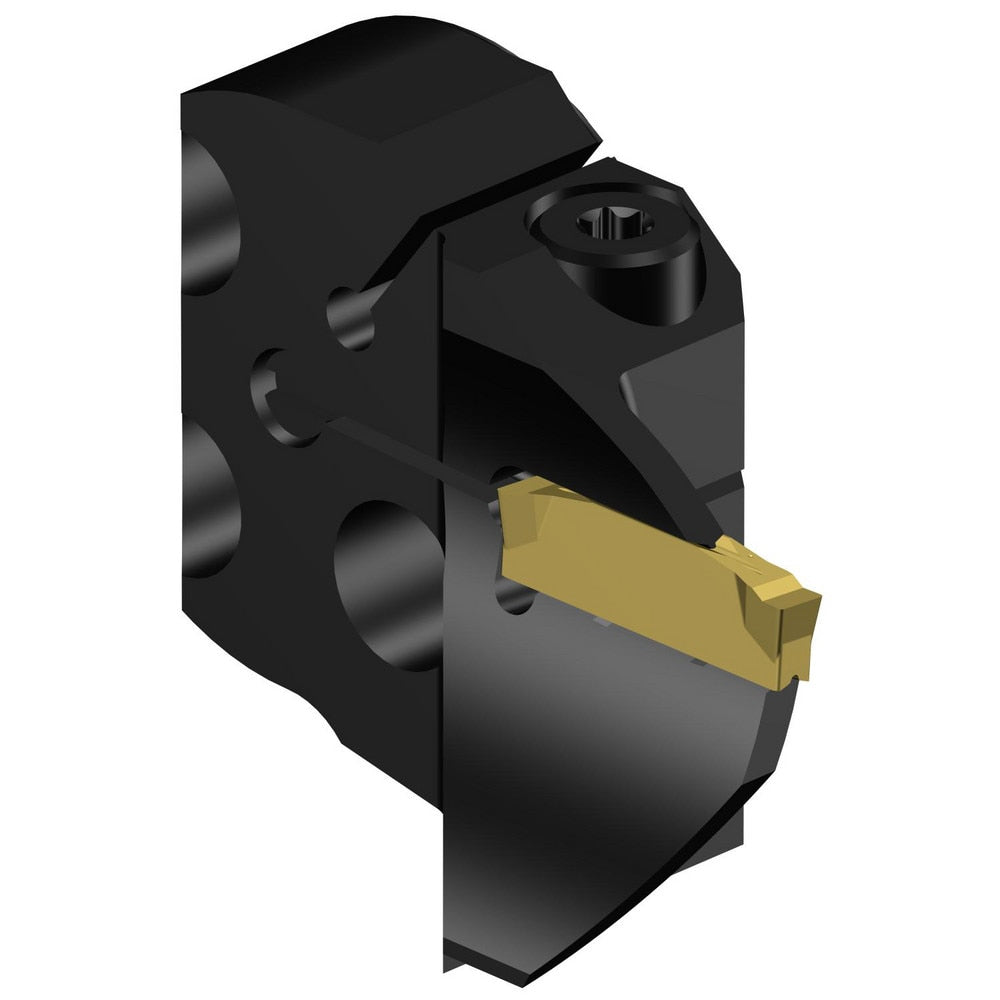

Modular Grooving Cutting Unit Heads; System Size: 32; Maximum Depth of Cut (Decimal Inch): 0.4724; Maximum Depth of Cut (mm): 12.00; Minimum Groove Width (Decimal Inch): 1.3819; Minimum Groove Width (mm): 35.10; Maximum Groove Width (Decimal Inch): 1.3819
Item #: 01662873
Brand: Sandvik Coromant
Model #: 8359130
Product Specifications
| System Size | 32 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 1.3819 |
| Minimum Groove Width (mm) | 35.10 |
| Maximum Groove Width (Decimal Inch) | 1.3819 |
| Maximum Groove Width (mm) | 35.10 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | G |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 35.10 |
| Center to Cutting Edge (Decimal Inch) | 1.3819 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size G (C2I-G2-0300-) |
| Applications | Face Grooving |
| Head Length Projection (Decimal Inch) | 0.5512 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 14.00 |
| UNSPSC Code | 27112809 |
