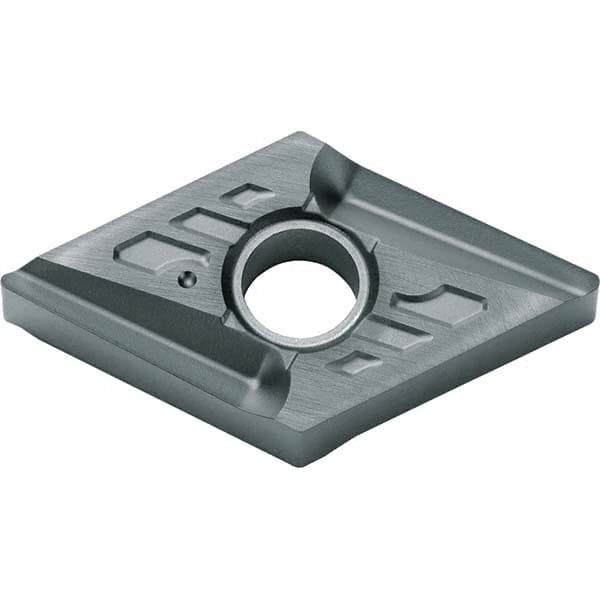

Kyocera - DNMG431 LD Grade PR1725 Carbide Turning Insert
Item #: 11391075
Brand: Kyocera
Model #: 8863495
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | LD |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | DNMG150404R-LD |
| Rake | Negative |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNMG431RLD PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Series | DNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
