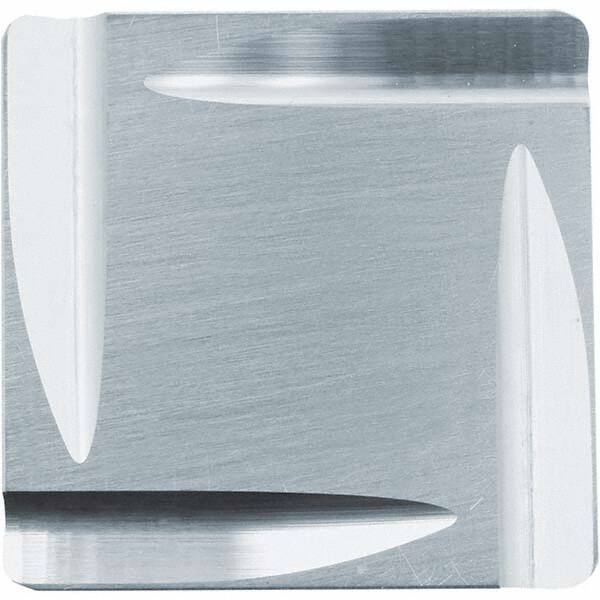

Kyocera - SPGR422 Grade TN620 Cermet Turning Insert
Item #: 11384344
Brand: Kyocera
Model #: 8862685
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGR |
| Insert Size | 422 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | TN620 |
| Coating | TiCN |
| ISO Number | SPGR120308R |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | SPGR422R TN620 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Hand | Right Hand |
| Series | SPGR |
| Insert Holding Method | Clamp |
| Multi Use Application | External Turning, Facing, Chamfering, Boring |
| MultiUseTool | Yes |
| Shape | Square |
