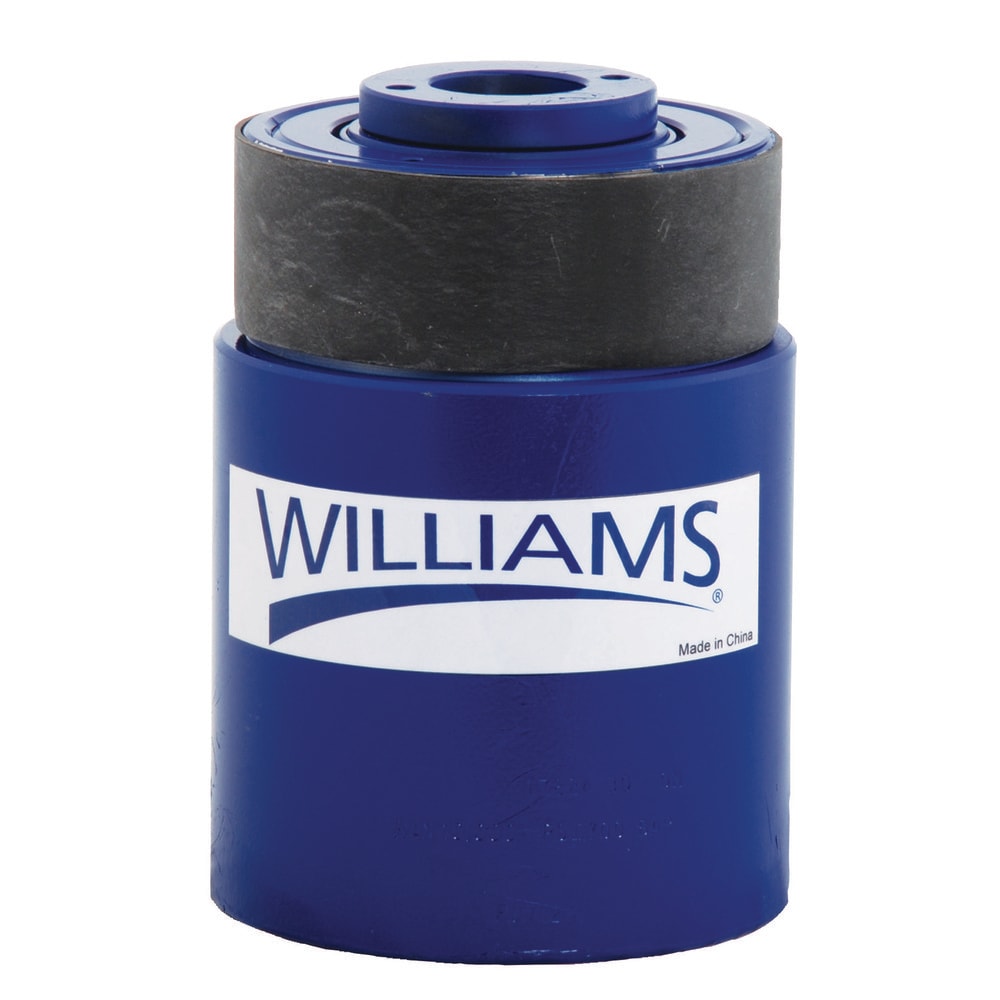

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 20 TON; Stroke Length: 2.01; Piston Stroke (Decimal Inch): 2.0100; Oil Capacity: 8.93; Cylinder Effective Area: 2.15; Lowered Height: 6.38
Item #: 54379433
Brand: Williams
Model #: 6CH20T02
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 20 TON |
| Stroke Length | 2.01 |
| Piston Stroke (Decimal Inch) | 2.0100 |
| Oil Capacity | 8.93 |
| Cylinder Effective Area | 2.15 |
| Lowered Height | 6.38 |
| Retracted Length | 8.38 |
| Extended Length | 2.01 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.92 |
| Rod Diameter | 1.083 |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | 1.38 |
| Plunger Internal Thread Size | 1-5/16-16UN |
| Plunger Internal Thread Length | 1.083 |
| Y Center Hole Diameter | 1.063 |
| Maximum Height (Inch) | 2.01 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| Actuation | Double Acting |
| Load Capacity | 20 TON |
| Stroke Length | 2.01 |
| Piston Stroke (Decimal Inch) | 2.0100 |
| Oil Capacity | 8.93 |
| Cylinder Effective Area | 2.15 |
| Lowered Height | 6.38 |
| Retracted Length | 8.38 |
| Extended Length | 2.01 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.92 |
| Rod Diameter | 1.083 |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .26 |
| Saddle Diameter | 1.38 |
| Plunger Internal Thread Size | 1-5/16-16UN |
| Plunger Internal Thread Length | 1.083 |
| Y Center Hole Diameter | 1.063 |
| Maximum Height (Inch) | 2.01 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
| MSC Part # | 54379433 |
| Mfr Part # | 6CH20T02 |
| Country of Origin Country of Origin is subject to change | Taiwan |
