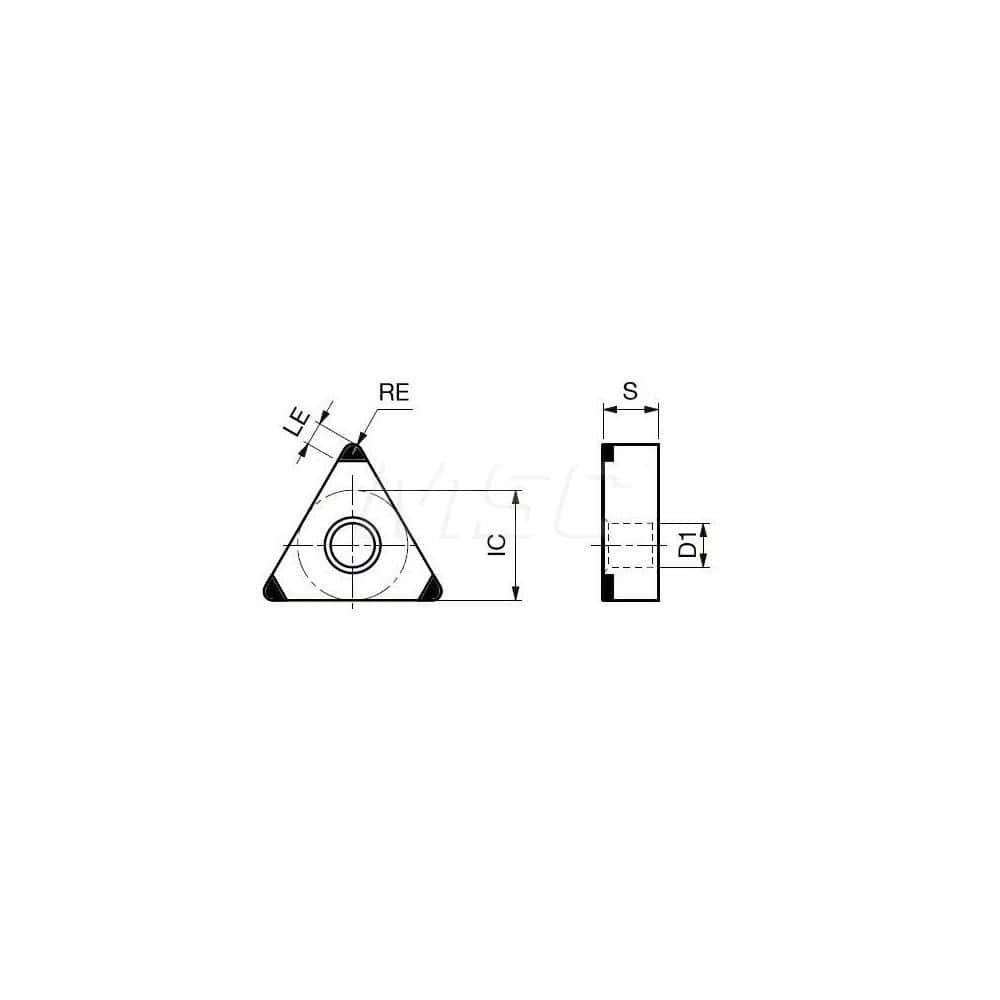

Turning Insert: 3QP-TNGA331 BX470, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNGA
Item #: 20900056
Brand: Tungaloy
Model #: 6852697
Product Specifications
| Insert Style | TNGA |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX470 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | 3QPTNGA331BX470 |
| Iso Code | 3QP-TNGA160404 BX470 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
