Turning Insert: 2QP-DCGW21.52 BX470, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW
Item #: 20897815
Brand: Tungaloy
Model #: 6852710

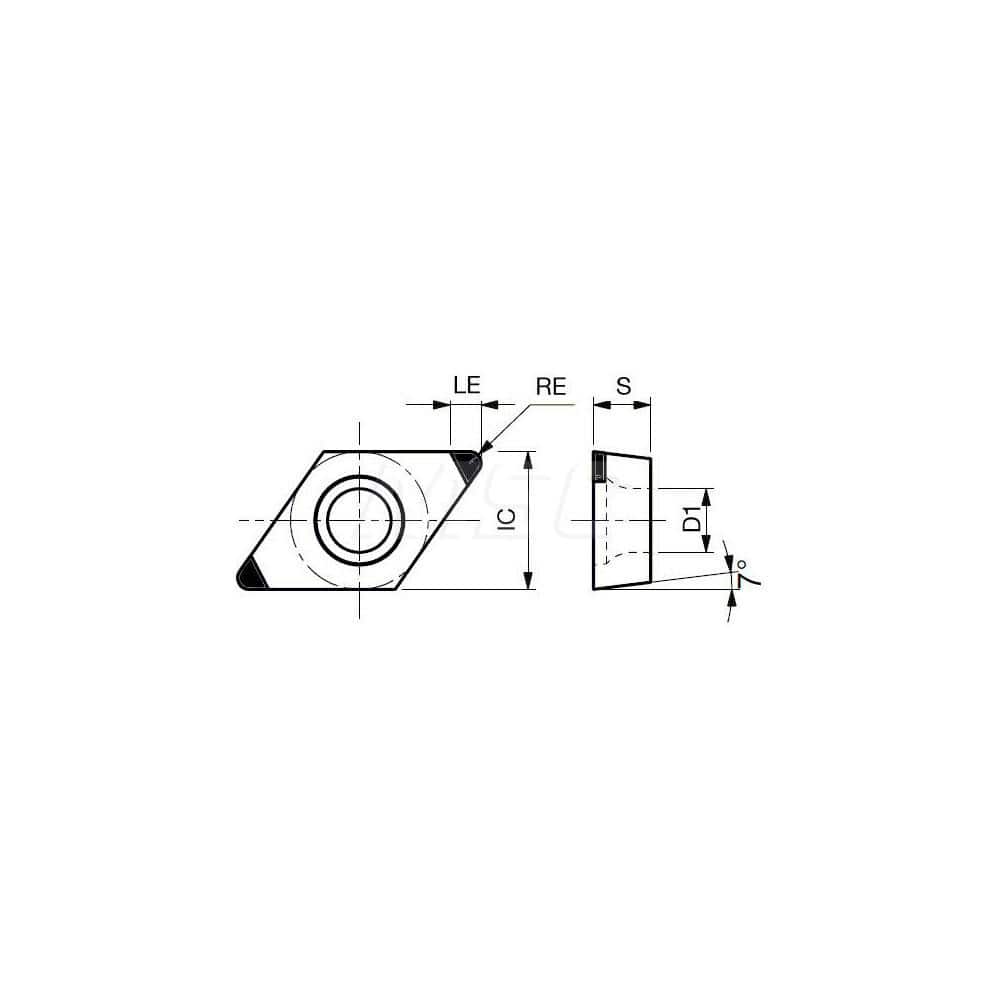

Product Specifications
| Insert Style | DCGW |
| Insert Size Code | 21.52 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX470 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | 2QPDCGW21.52BX470 |
| Iso Code | 2QP-DCGW070208 BX470 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
