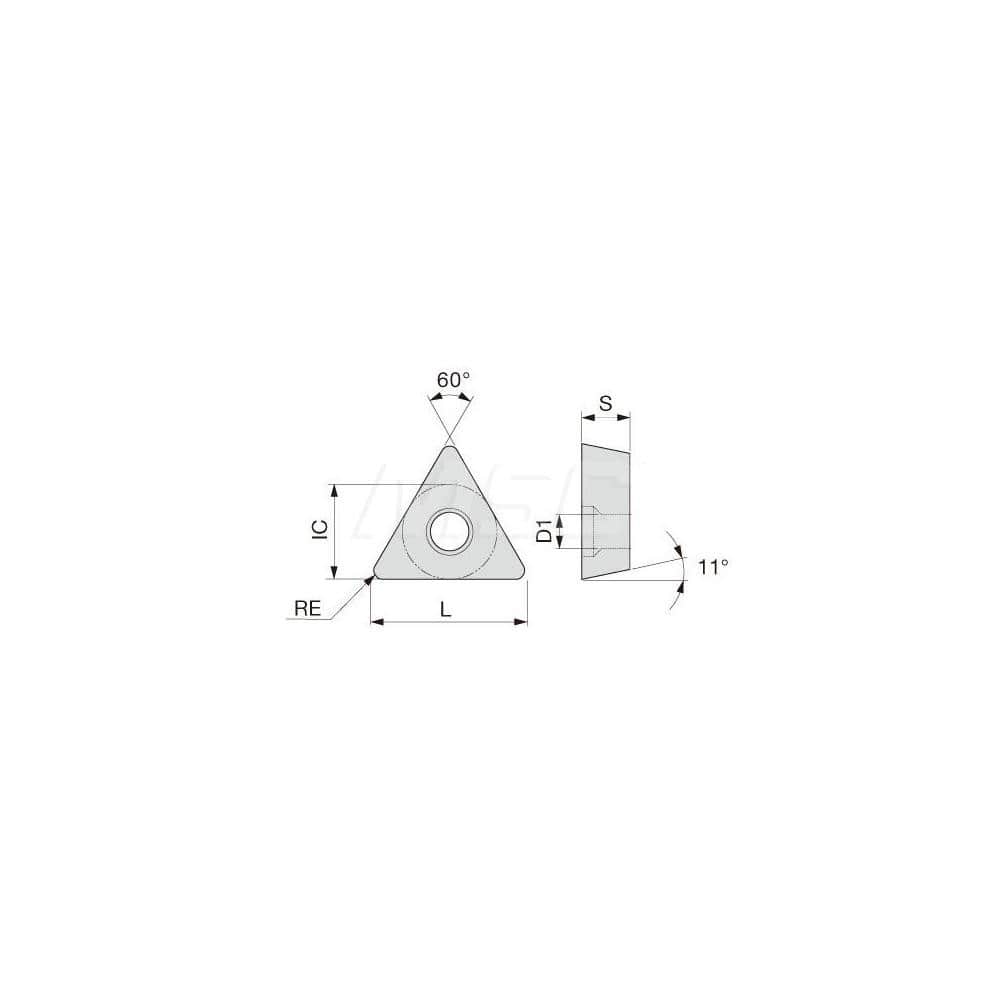

Turning Insert: TPMT222PS GH730, Solid Carbide TiCNO Finish, Neutral, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TPMT
Item #: 20877742
Brand: Tungaloy
Model #: 6821021
Product Specifications
| Insert Style | TPMT |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GH730 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | TPMT222PSGH730 |
| Iso Code | TPMT222-PS GH730 |
| Chip Breaker | PS |
| Coating/Finish | TiCNO |
