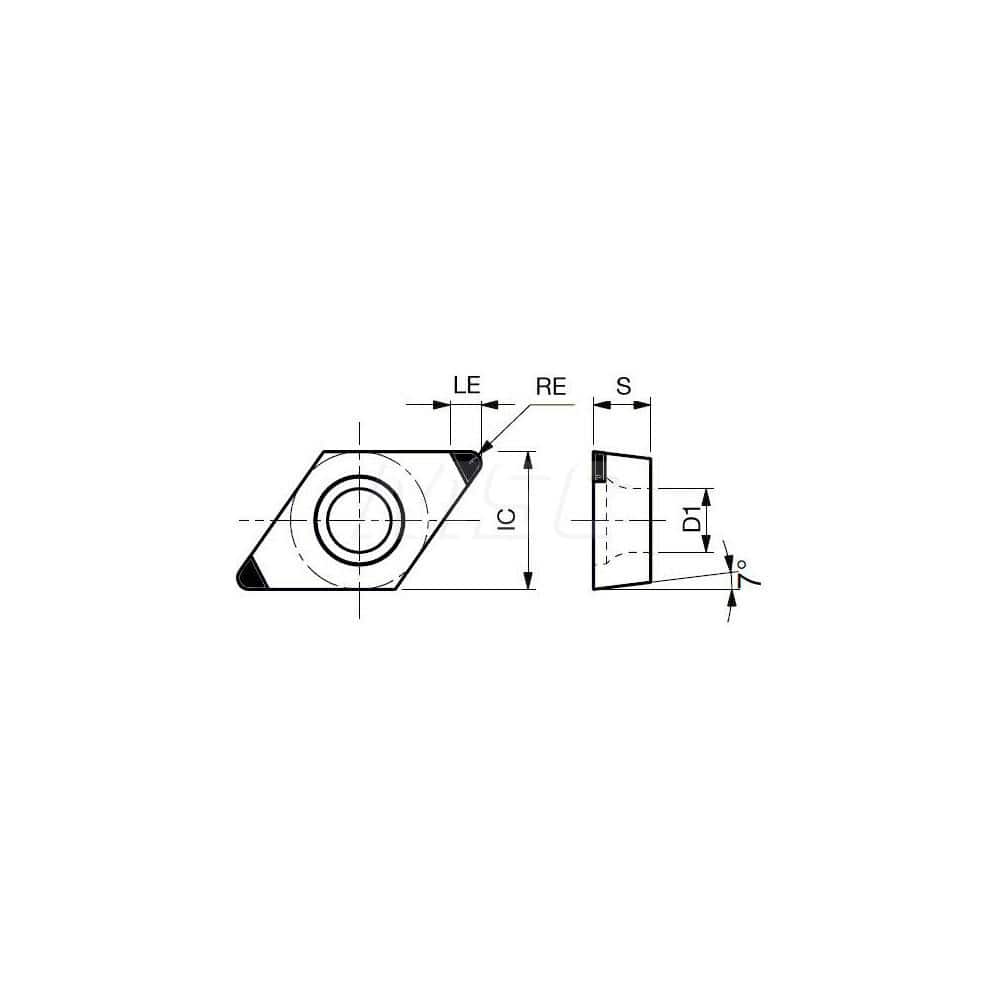

Turning Insert: 2QP-DCMW32.50.5 BX330, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 55.0 ° N/A Diamond, Series DCMW
Item #: 20877361
Brand: Tungaloy
Model #: 6822376
Product Specifications
| Insert Style | DCMW |
| Insert Size Code | 32.50.5 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX330 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCMW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPDCMW32.50.5BX330 |
| Iso Code | 2QP-DCGW32.50.5 BX330 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
