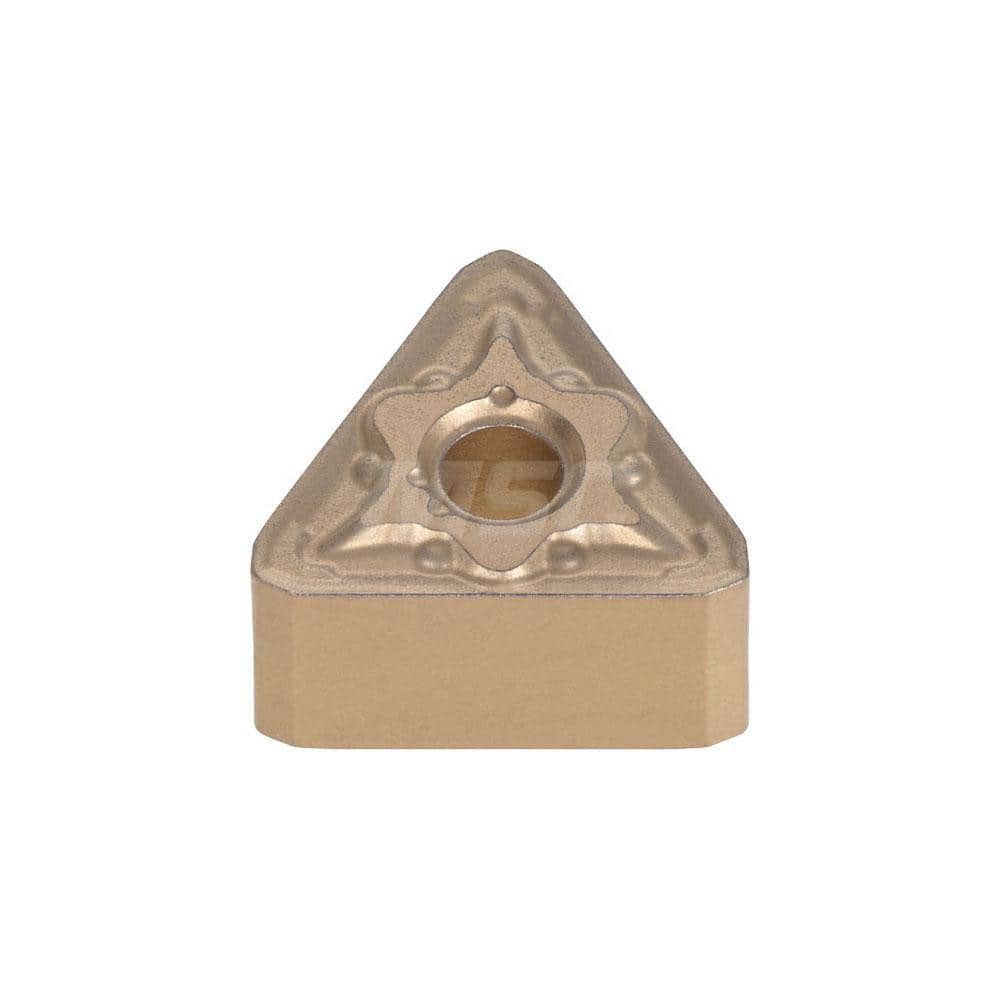

Turning Insert: TNMG232ESW T9215, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG
Item #: 20876108
Brand: Tungaloy
Model #: 6772316
Product Specifications
| Insert Style | TNMG |
| Insert Size Code | 232 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9215 |
| Hole Diameter (Decimal Inch) | 0.0890 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | TNMG232ESWT9215 |
| Iso Code | TNMG110408E-SW T9215 |
| Chip Breaker | SW |
| Coating/Finish | TiCN; TiN; Al2O3 |
