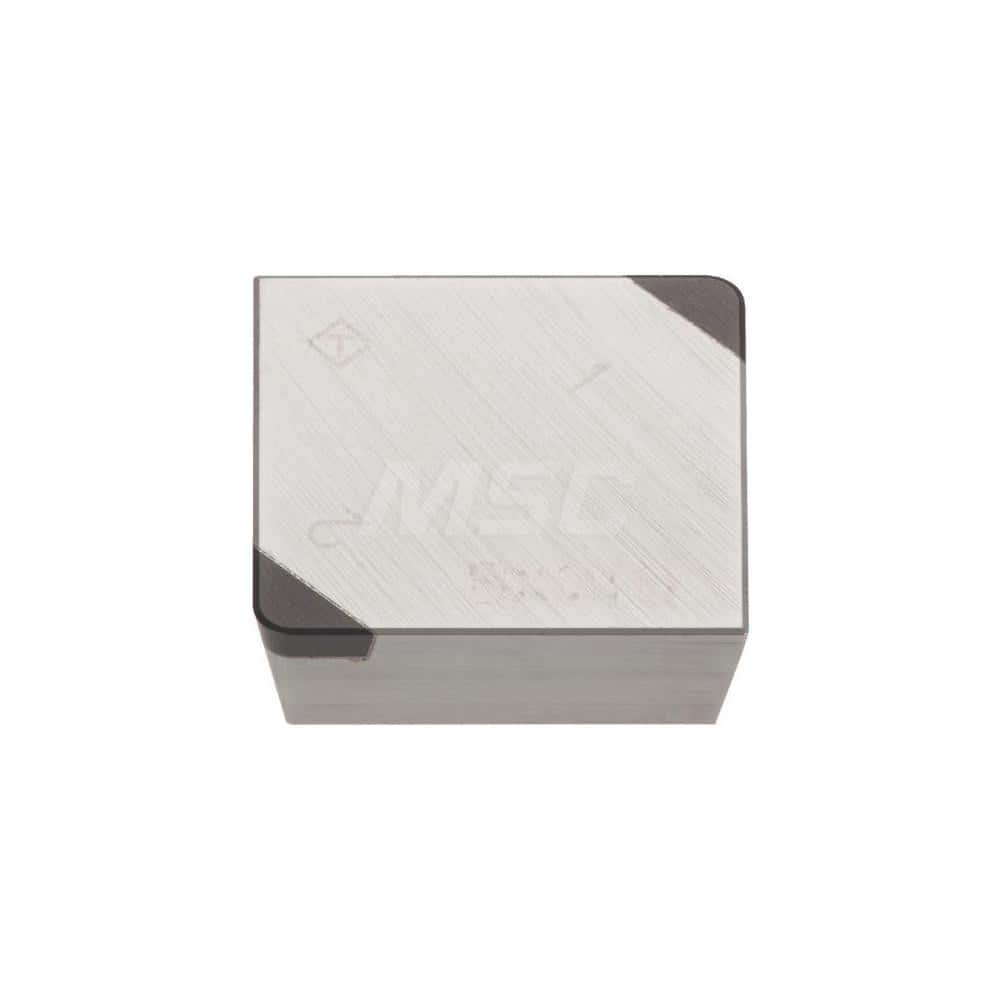

Turning Insert: 2QP-SPMN321 BX360, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 90.0 ° N/A Square, Series SPMN
Item #: 20868055
Brand: Tungaloy
Model #: 6818004
Product Specifications
| Insert Style | SPMN |
| Insert Size Code | 321 |
| Insert Shape | Square |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX360 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 90.0 |
| Relief Angle | 11 |
| Series | SPMN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPSPMN321BX360 |
| Iso Code | 2QP-SPMN321 BX360 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
