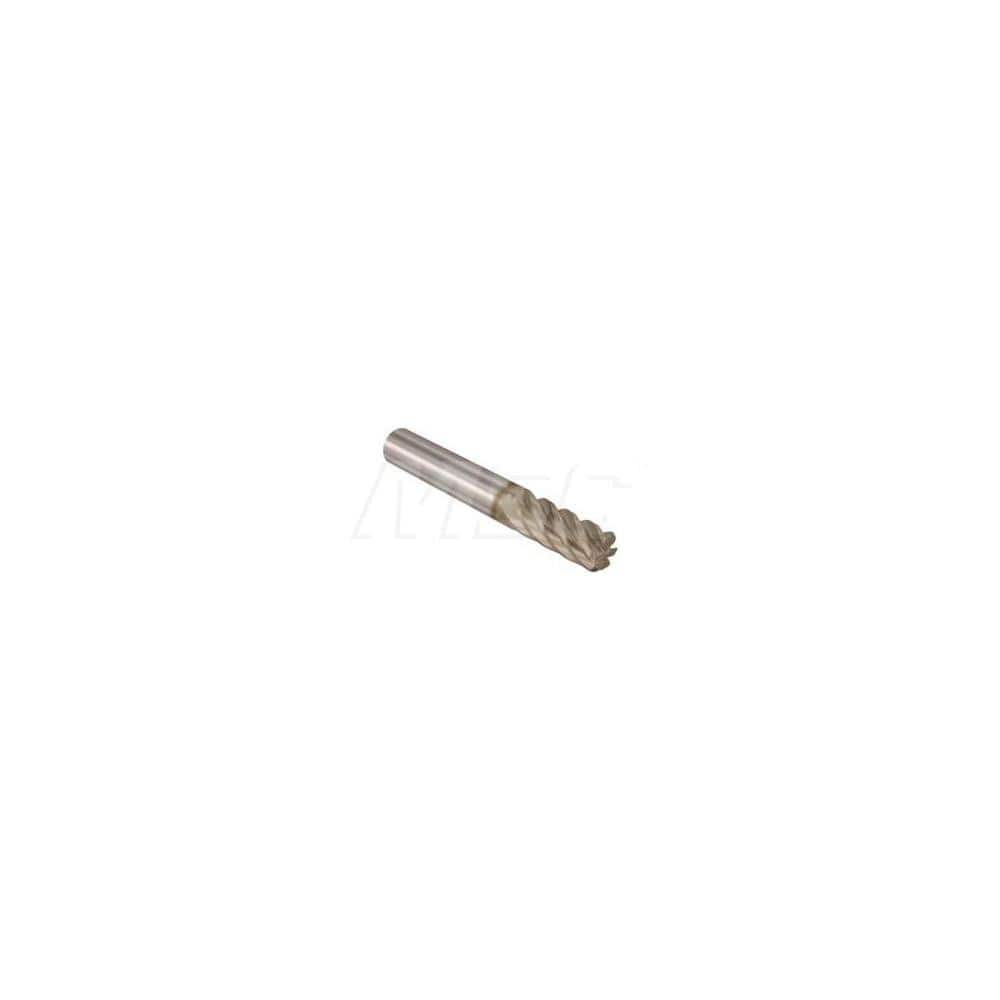

Corner Radius End Mill: 0.7874″ Dia, 6 Flutes, Solid Carbide 38 ° Helix, HXT Coated, Corner Radius End, Centercutting, Series JS720
Item #: 20801106
Brand: Seco
Model #: 03060314
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 0.50 |
| Length of Cut (mm) | 62.00 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Helical |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 121.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Mill Diameter Tolerance | -0.040000 to -0.061000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| TIR Maximum (mm) | 0.01 |
| Material Application | Super Alloy; Stainless Steels |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Manufacturers Catalog Number | JS720200D3R050.0Z6-HXT |
| Coating/Finish | HXT |
