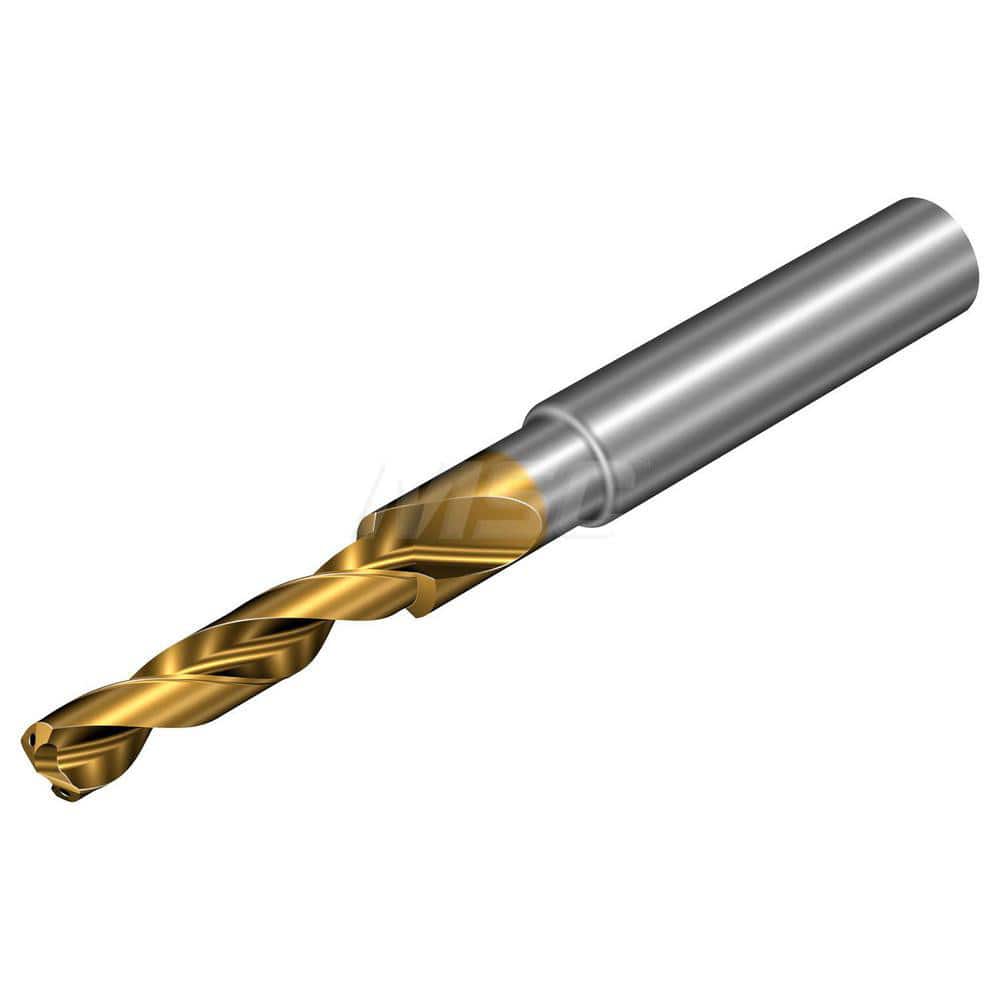

7.4mm Minor 9.8mm Major 22mm Step Length 147° High Performance Solid Carbide Subland Step Drill Bit TiAlSiN & TiSiN Finish, 89mm OAL, Series CoroDrill 860
Item #: 20749776
Brand: Sandvik Coromant
Model #: 8151511
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Form Tap Thread Size (Inch) | 5/16-24 |
| Form Tap Thread Size (mm) | M8 x 1.25 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 0.8661 |
| Step Length (mm) | 22.00 |
| Minor Diameter (Decimal Inch) | 0.2913 |
| Minor Diameter (mm) | 7.40 |
| Through Coolant | Yes |
| Coating/Finish | TiSiN; TiAlSiN |
| Shank Type | Straight-Cylindrical |
| Shoulder Included Angle | 90 |
| Series | CoroDrill 860 |
| Major Diameter (Decimal Inch) | 0.3858 |
| Major Diameter (mm) | 9.80 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Drill Point Angle | 147 |
| Tool Performance | High Performance |
| Number Of Flutes | 2 |
| Manufacturers Grade | P1BM |
