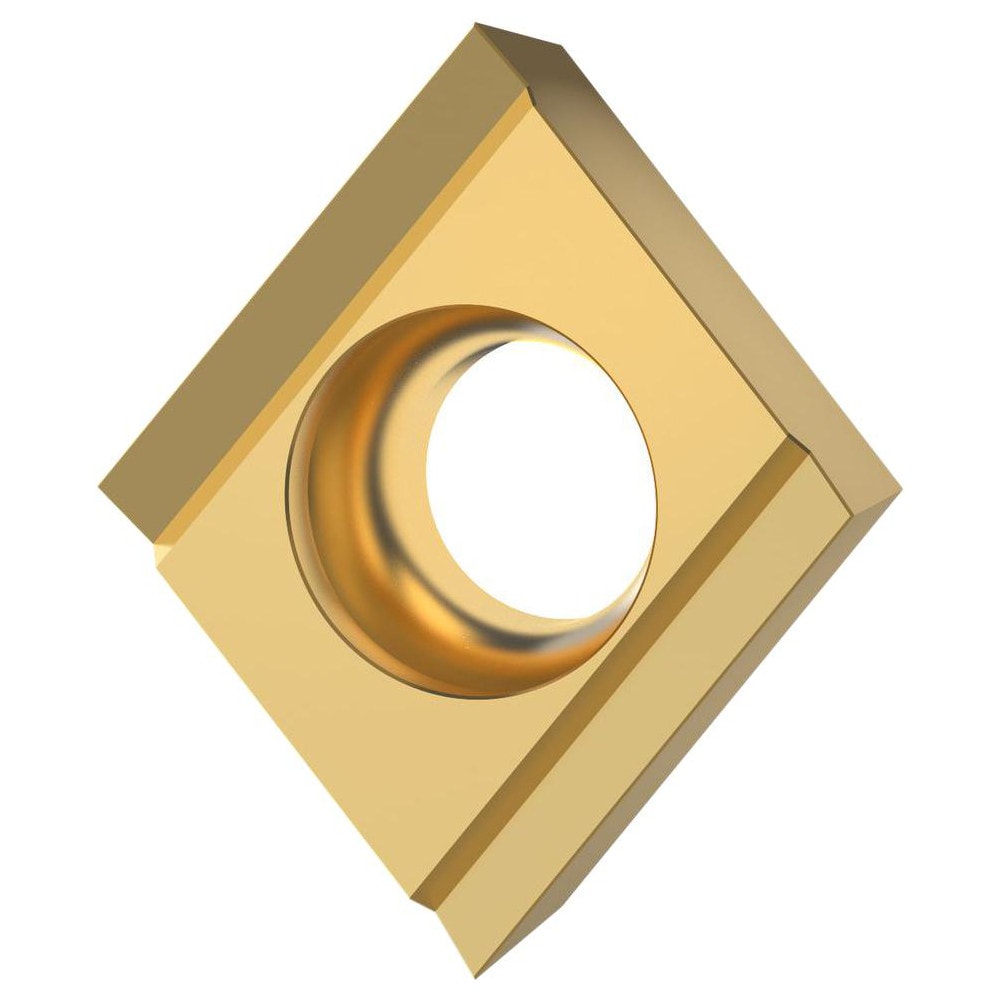

Turning Insert: CCET215X0RPPS KTP25S, Carbide
Item #: 94419843
Brand: Kennametal
Model #: 7161020
Product Specifications
| ANSI Insert Code | CCET215X0 |
| ISO Insert Code | CCET0602X0 |
| Relief Angle | 7.000 |
| Insert Style | CCET |
| Corner Radius (Decimal Inch) | 0.0012 |
| Included Angle | 55.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 3/32 |
| Series | CCET |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | E |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2543 |
| Iso Code | CCET0602X0RPPS |
| Manufacturers Catalog Number | CCET215X0RPPS KTP25S |
| Chip Breaker | PPS |
| ANSI Size Code | 215X0 |
| ISO Size Code | 0602X0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 215X0 |
| Country of Origin | Japan |
