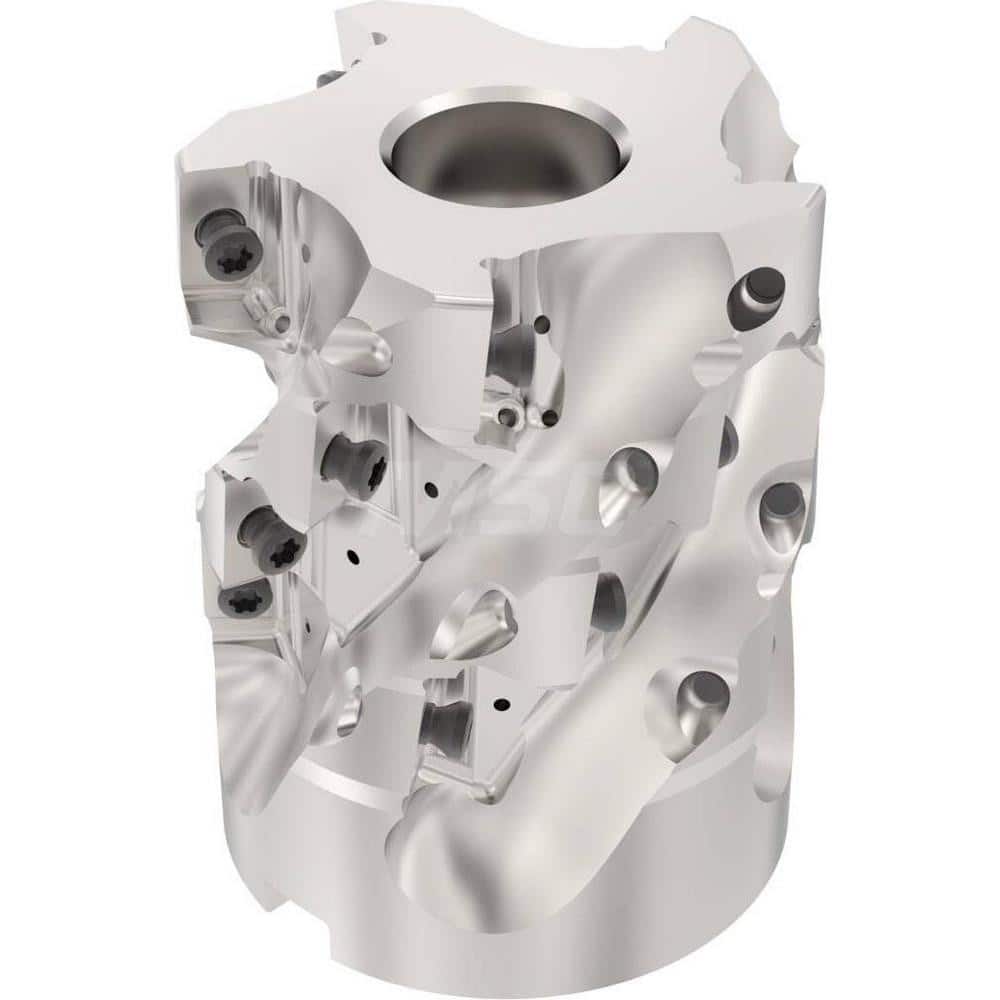

Indexable Square-Shoulder Face Mill: R220.6902.502.24XO165A, 2-1/2'' Cut Dia, 1.0000″ Arbor Hole Dia, 2.2440″ Max Cutting Depth Uses 20, XOxX1605 Inserts, Through Coolant, Series Turbo 16 Helical
Item #: 20646931
Brand: Seco
Model #: 10067020
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 2.2440 |
| Arbor Hole Diameter (mm) | 1.00 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XOxX1605 |
| Maximum Ramping Angle | 1.50 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | -5.5 |
| Series | Turbo 16 Helical |
| Overall Height (Decimal Inch) | 3.2500 |
| Keyway Width (Decimal Inch) | 0.3820 |
| Hub Diameter (Decimal Inch) | 2.2830 |
| Pitch Type | Close |
| Maximum RPM | 10500 |
| Tool Application | Shouldering; Ramping |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 5 |
