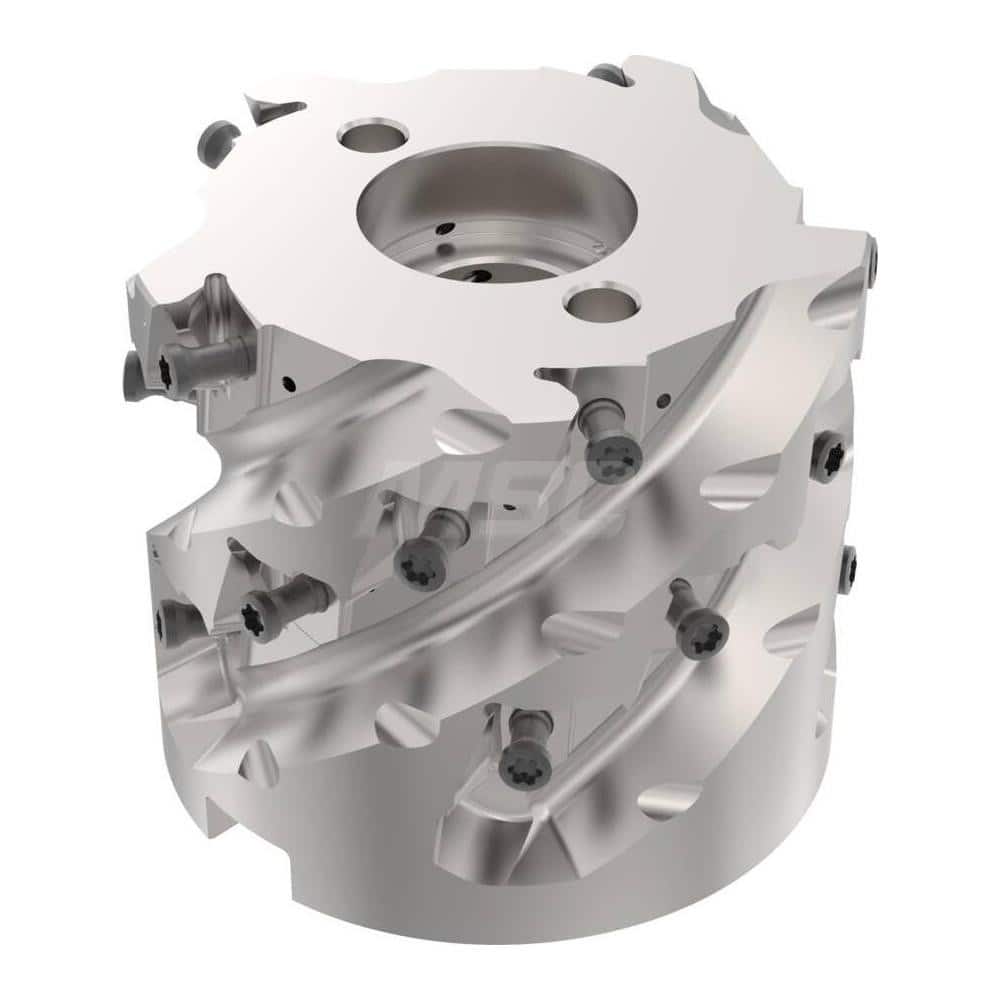

Indexable Square-Shoulder Face Mill: R220.9403.001.7612.5BA, 3'' Cut Dia, 1.2500″ Arbor Hole Dia, 1.7930″ Max Cutting Depth Uses 20, LOEX1207 Inserts, Through Coolant, Series R220.94
Item #: 20631107
Brand: Seco
Model #: 03147478
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7930 |
| Arbor Hole Diameter (mm) | 1.25 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | LOEX1207 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | Helical |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 5.5 |
| Series | R220.94 |
| Overall Height (Decimal Inch) | 2.5200 |
| Maximum RPM | 7800 |
| Tool Application | Facing; Shouldering |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 5 |
