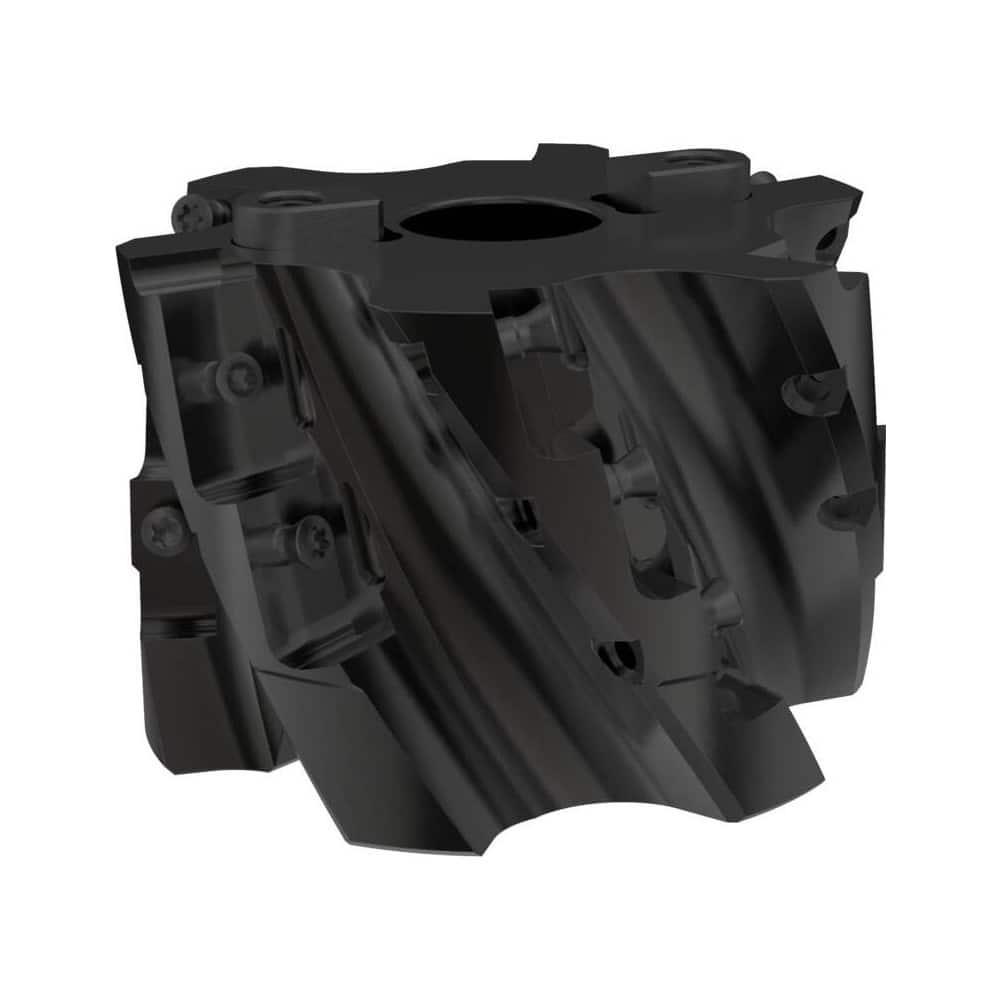

Indexable Square-Shoulder Face Mill: R220.59-00100043-12.6B, 40.0000″ Arbor Hole Dia, Uses 15, ACET1506, ACMT1506, SCET1206 & SCMT1206 Inserts, Through Coolant, Series R220.59
Item #: 20628657
Brand: Seco
Model #: 75000229
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 43.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Inch) | 40 |
| Arbor Hole Diameter (Decimal Inch) | 40.0000 |
| Compatible Insert Size Code | SCMT1206; ACET1506; ACMT1506; SCET1206 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | Helical |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -12.0 |
| Series | R220.59 |
| Overall Height (Mm - 5 Decimals) | 66.30 |
| Maximum RPM | 5800 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 3 |
