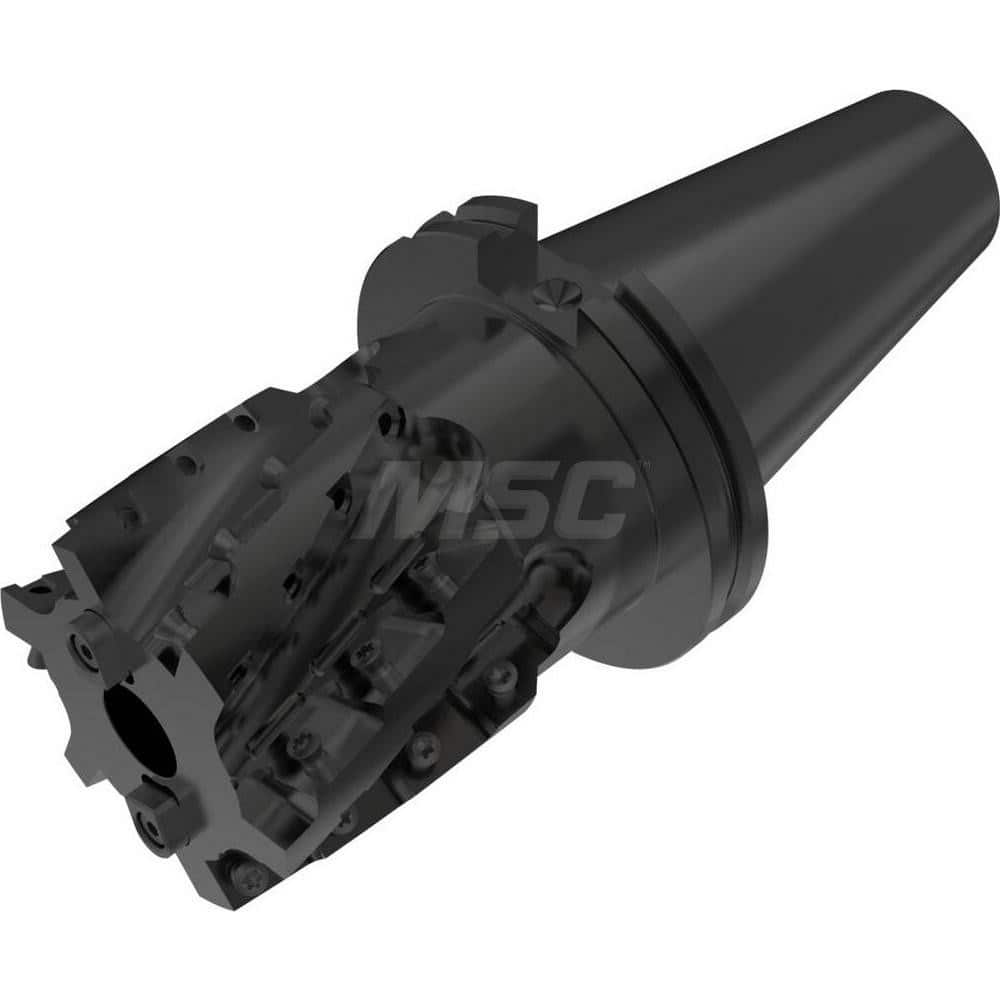

Indexable Square-Shoulder End Mill: R215.59CV5008006112.6B, 69.8500'' Shank Dia, Taper Shank Uses 21, Normal Pressure, 217.90 mm OAL
Item #: 20628640
Brand: Seco
Model #: 75000228
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 61.00 |
| Cutter Style | Helical |
| Shank Type | Taper |
| Shank Diameter (Decimal Inch) | 69.8500 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | CV50 |
| Overall Length (mm) | 217.90 |
| Tool Material | Steel |
| Series | R215.59 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Maximum RPM | 6500 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Usable Length (mm) | 116.200 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 21 |
| Coolant Through | Normal Pressure |
