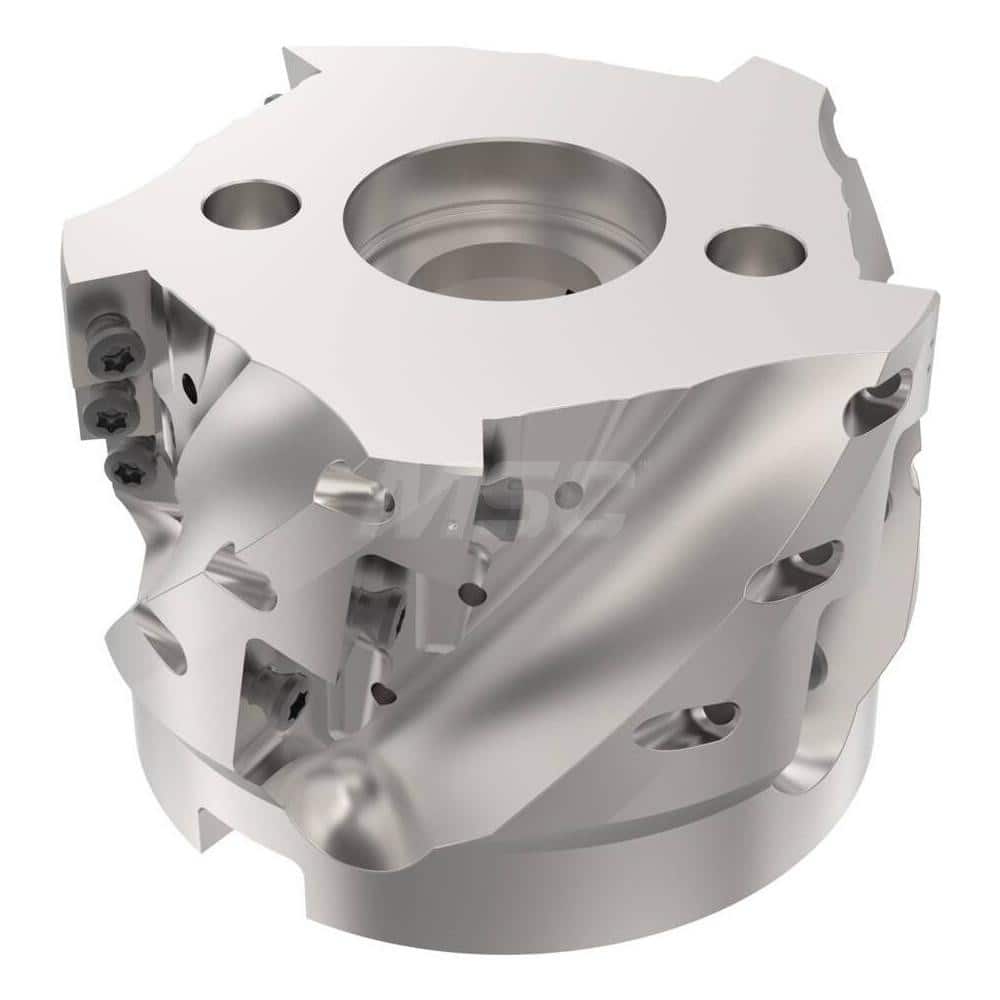

Indexable Square-Shoulder Face Mill: R220.690010004618.5BAN, 40.0000″ Arbor Hole Dia, Uses 15, XOMX1806 & XOEX1806 Inserts, Through Coolant, Series R220.69
Item #: 20628616
Brand: Seco
Model #: 02717772
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 46.30 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Inch) | 40 |
| Arbor Hole Diameter (Decimal Inch) | 40.0000 |
| Compatible Insert Size Code | XOEX1806; XOMX1806 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | Helical |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 6.5 |
| Series | R220.69 |
| Overall Height (Mm - 5 Decimals) | 70.20 |
| Maximum RPM | 6300 |
| Tool Application | Facing; Shouldering |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 5 |
