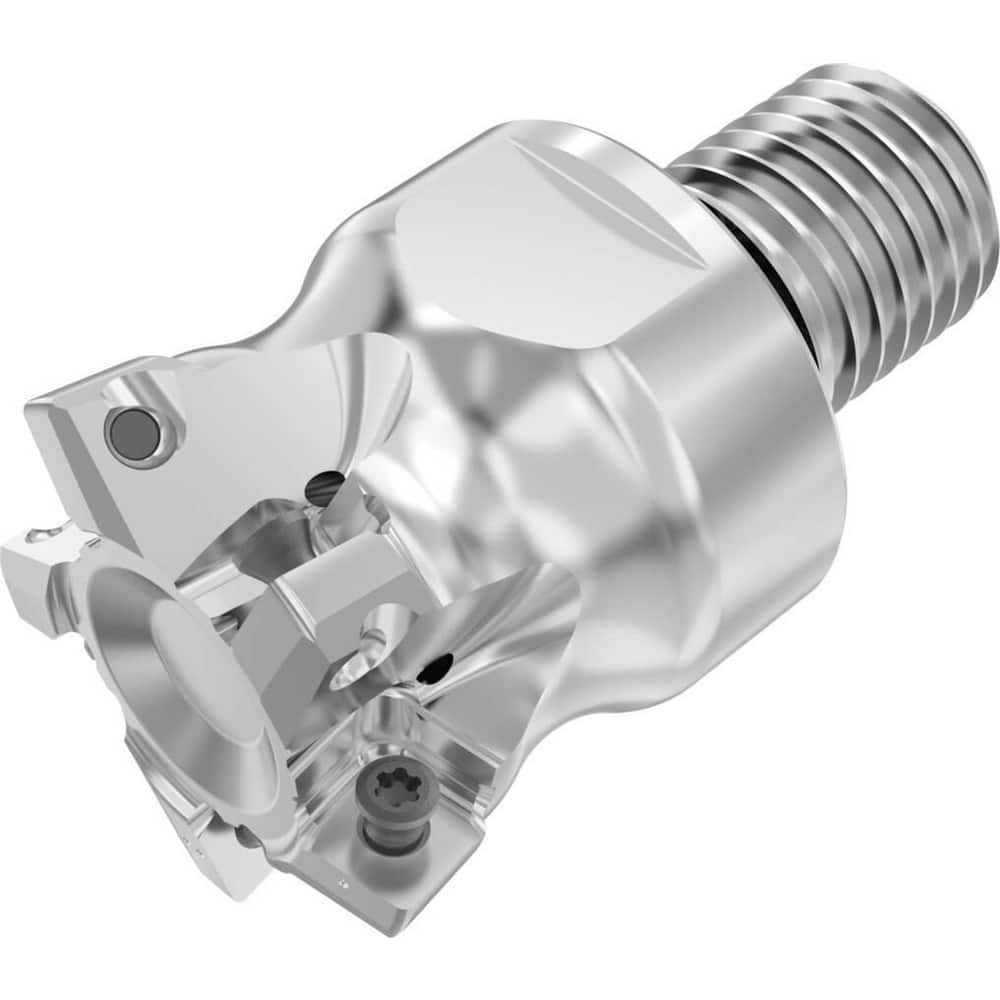

Indexable High-Feed End Mill: 40 mm Cut Dia, 20 mm Modular Shank Uses 5 SPKT Inserts, 1.1″ Max Depth, 40″ OAL, Through Coolant
Item #: 20628400
Brand: Seco
Model #: 10097560
Product Specifications
| Minimum Cutting Diameter (mm) | 23.70 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 1.10 |
| Maximum Depth of Cut (Decimal Inch) | 1.1000 |
| Toolholder Style | R217.21 |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (Inch) | 20 |
| Shank Diameter (mm) | 20.00 |
| Maximum Ramping Angle | 2.70 |
| Compatible Insert Style | SPKT |
| Compatible Insert Size Code | 10T317 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 40.0000 |
| Overall Length (Inch) | 40 |
| Overall Length (mm) | 40.00 |
| Series | R217.21 |
| Maximum RPM | 19300 |
| Modular Connection Size | M20 |
| Head Length (mm) | 40.00 |
| Functional Length (mm) | 40.00 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | High-Performance |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
