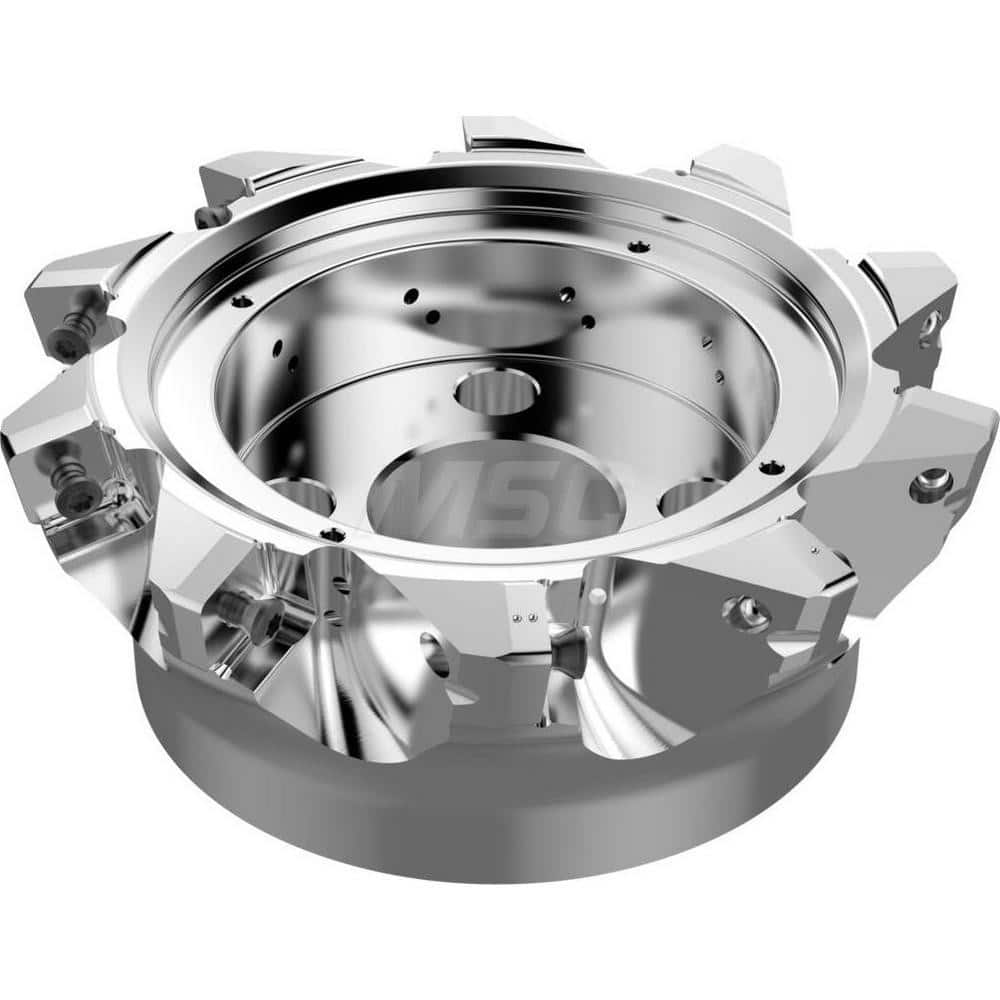

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 4.8300 in; Maximum Cutting Diameter: 6.0000 in; Maximum Depth Of Cut: 0.0980 in; Arbor Hole Diameter (mm): 2.00; Compatible Insert Size Code: SPKT180630; Maximum Ramping Angle: 1.0; Series: R220.21
Item #: 20628145
Brand: Seco
Model #: 10097590
Product Specifications
| Minimum Cutting Diameter | 4.8300 in |
| Maximum Cutting Diameter | 6.0000 in |
| Maximum Depth Of Cut | 0.0980 in |
| Arbor Hole Diameter (mm) | 2.00 |
| Compatible Insert Size Code | SPKT180630 |
| Maximum Ramping Angle | 1.0 |
| Series | R220.21 |
| Cutter Style | High Feed |
| Number of Cutter Inserts | 10 |
| Through Coolant | Normal Pressure |
| Keyway Width | 0.7600 |
| Overall Height | 2.5000 in |
| Maximum Rpm | 3700.000 |
| Tool Application | Helical Interpolation; Plunging; Ramping; Shouldering; Slotting; Face Milling |
| Tool Performance | High Performance |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
