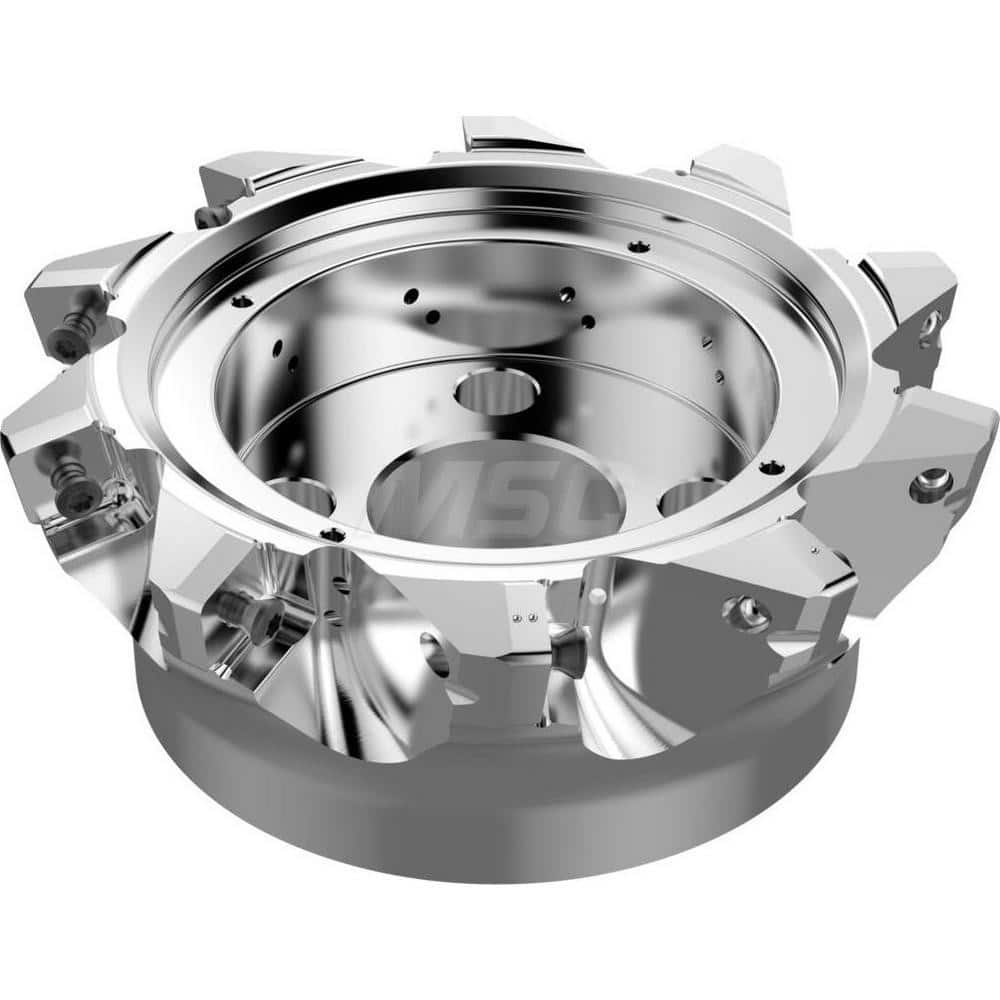

Indexable High-Feed Face Mills; Minimum Cutting Diameter: 130.60 mm; Maximum Cutting Diameter: 160.00 mm; Maximum Depth Of Cut: 2.50 mm; Arbor Hole Diameter (mm): 40.00; Compatible Insert Size Code: SPKT180630; Maximum Ramping Angle: 0.9; Series: R220.21;
Item #: 20628087
Brand: Seco
Model #: 10097585
Product Specifications
| Minimum Cutting Diameter | 130.60 mm |
| Maximum Cutting Diameter | 160.00 mm |
| Maximum Depth Of Cut | 2.50 mm |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | SPKT180630 |
| Maximum Ramping Angle | 0.9 |
| Series | R220.21 |
| Cutter Style | High Feed |
| Number of Cutter Inserts | 10 |
| Through Coolant | Normal Pressure |
| Keyway Width | 16.4000 |
| Overall Height | 63.00 mm |
| Maximum Rpm | 3600.000 |
| Tool Application | Helical Interpolation; Plunging; Ramping; Shouldering; Slotting; Face Milling |
| Tool Performance | High Performance |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 10 |
