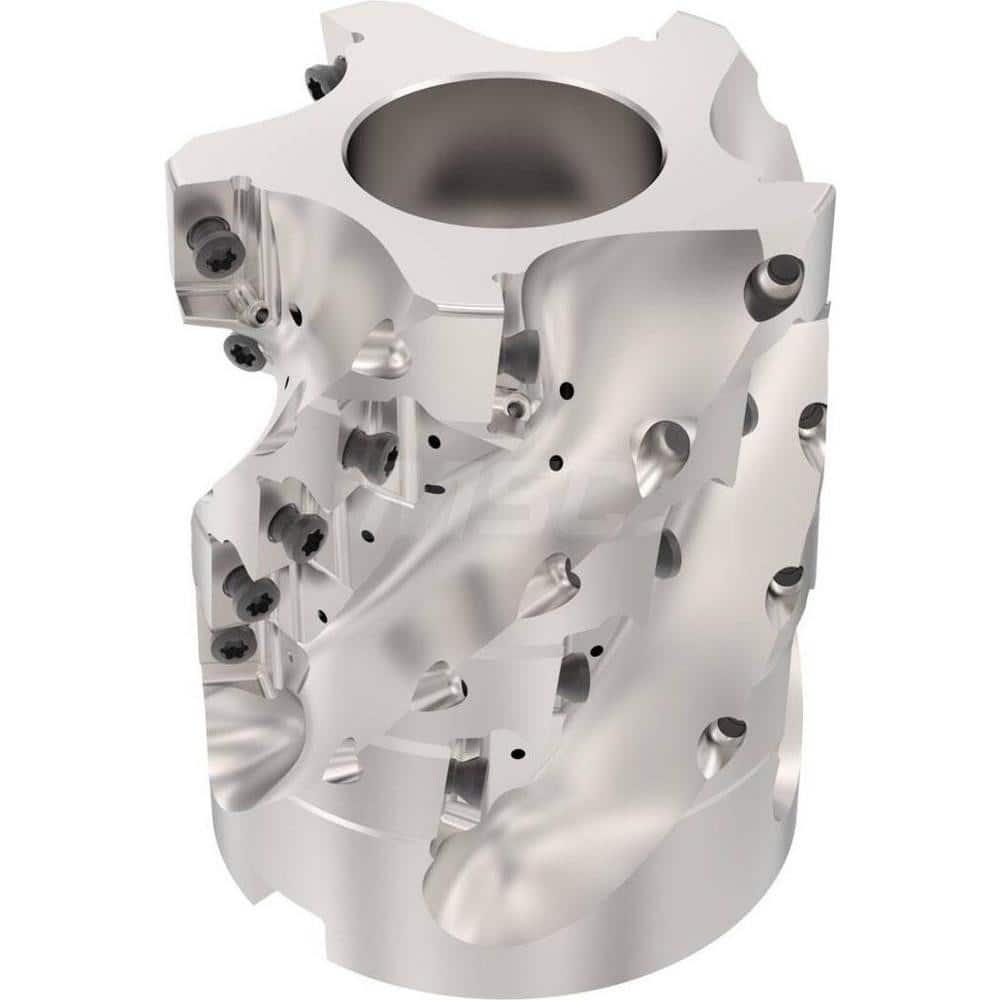

Indexable Square-Shoulder Face Mill: R220.6903.002.79XO165A, 3'' Cut Dia, 1.2500″ Arbor Hole Dia, 2.7950″ Max Cutting Depth Uses 25, XOxX1605 Inserts, Through Coolant, Series Turbo 16 Helical
Item #: 20596615
Brand: Seco
Model #: 10067021
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.7950 |
| Arbor Hole Diameter (mm) | 1.25 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | XOxX1605 |
| Maximum Ramping Angle | 1.10 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | -6.0 |
| Series | Turbo 16 Helical |
| Overall Height (Inch) | 3-3/4 |
| Overall Height (Decimal Inch) | 3.7500 |
| Keyway Width (Decimal Inch) | 0.5080 |
| Hub Diameter (Decimal Inch) | 2.7950 |
| Pitch Type | Medium |
| Maximum RPM | 9300 |
| Tool Application | Helical Interpolation; Slotting; Shouldering; Ramping |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 25 |
| Number Of Flutes | 5 |
