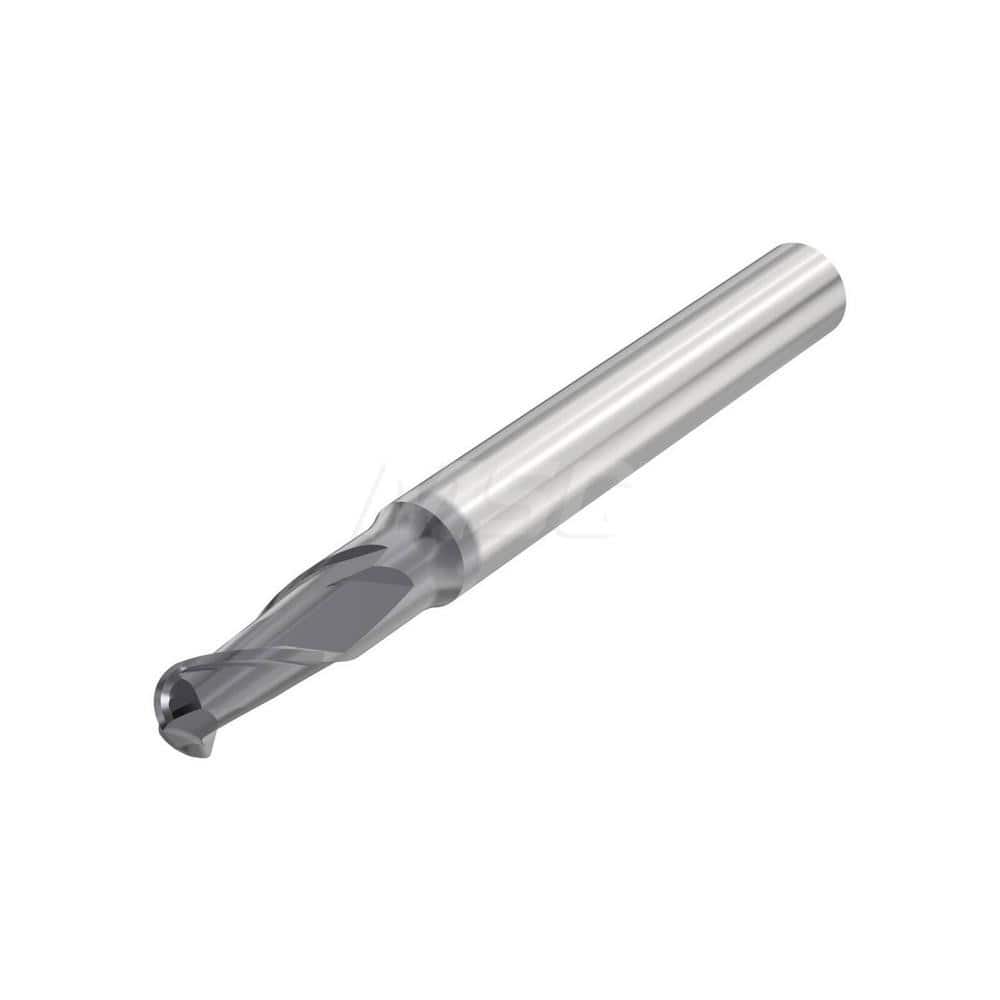

Ball End Mill: 0.0787″ Dia, 2 Flute, Solid Carbide 40 mm OAL, 3 mm Shank Dia, 35 ° Helix, SIRON-A Coated, Single End, Series JHB512
Item #: 20522876
Brand: Seco
Model #: 10053561
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0787 |
| Mill Diameter (mm) | 2.00 |
| Length of Cut (mm) | 3.00 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 35 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | Yes |
| Length Type | Short |
| Shank Diameter (mm) | 3.00 |
| Neck Diameter (Decimal Inch) | 2.0500 |
| Neck Diameter (mm) | 2.05 |
| Neck Length (Inch) | 7 |
| Neck Length (Decimal Inch) | 7.0000 |
| Reach Length (mm) | 10.00 |
| Overall Length (mm) | 40.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | JHB512 |
| Flute Type | Helical |
| Centercutting | No |
| Single Or Double End | Single |
| Coating/Finish | SIRON-A |
| Manufacturers Catalog Number | JSB512020F2B.0Z2 |
