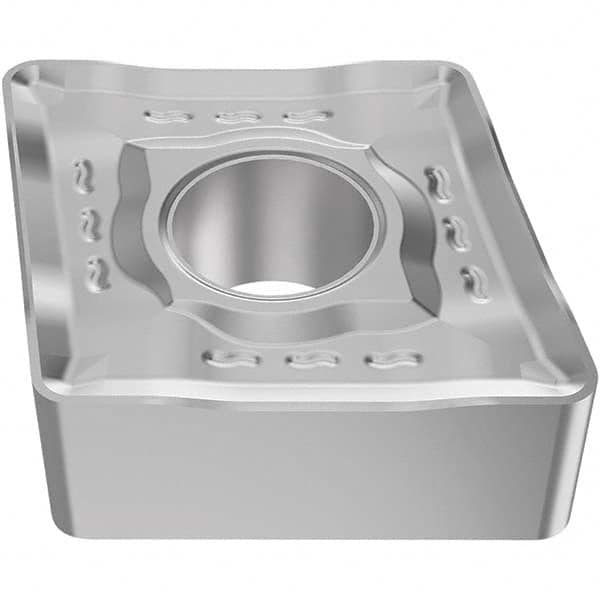

Seco - CNMM544 RR6 Grade TM3501 Carbide Turning Insert
Item #: 18614834
Brand: Seco
Model #: 03279991
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 544 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5709 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/16 |
| Manufacturer's Grade | TM3501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | RR6 |
| Overall Length (Decimal Inch) | 0.6339 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMM160616 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 20 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMM544-RR6 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
