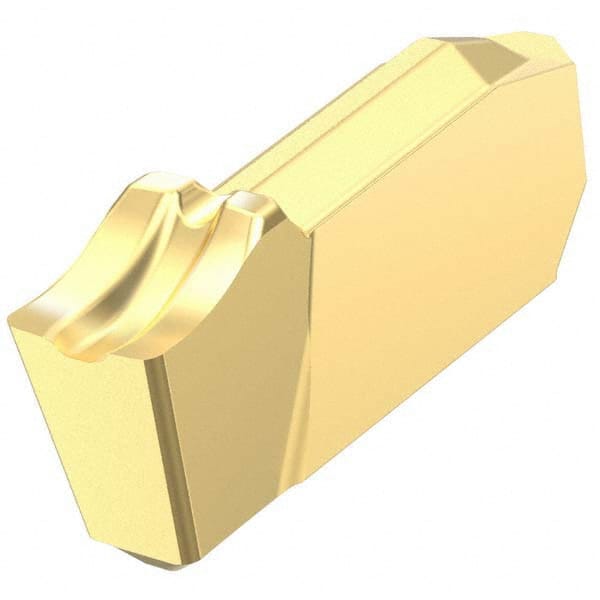

Kennametal - Cut-Off Inserts Material: Carbide Insert Style: EC
Item #: 99982001
Brand: Kennametal
Model #: 6675297
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Cut-Off Inserts; Material: Carbide ; Insert Style: EC ; Insert Size: 188 ; Lead Angle Direction: Right Hand ; Lead Angle: 6 ; Cutting Width (Inch): 3/16
| Material | Carbide |
| Insert Style | EC |
| Insert Size | 188 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (Inch) | 3/16 |
| Manufacturer's Grade | KCU25 |
| Coating | Al2O3 |
| Series | Beyond Evolution |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3945 |
| Cutting Height (Decimal Inch) | 0.1764 |
| Insert Hand | Right Hand |
| Insert Seat Size | 4 |
| Manufacturers Catalog Number | EC188I04PR06CF00 |
