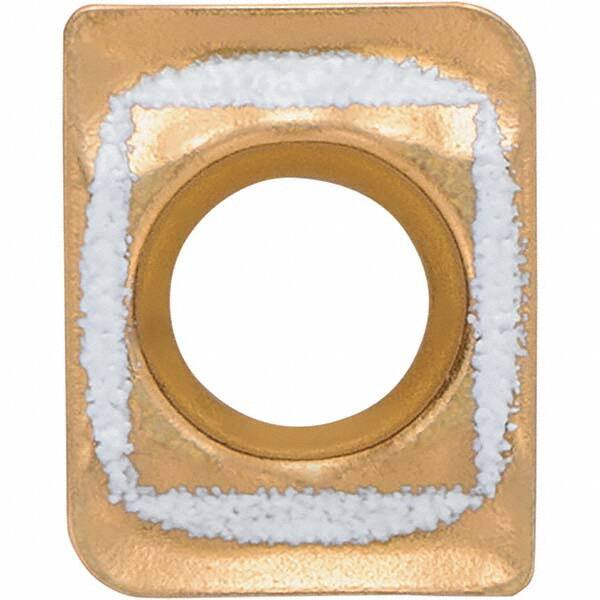

Kyocera - LCMT030203 SM-E Grade CA520D Carbide Indexable Drill Insert
Item #: 10626968
Brand: Kyocera
Model #: 8861047
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCMT |
| Insert Size | 030203 |
| Material | Carbide |
| Manufacturer's Grade | CA520D |
| Inscribed Circle (mm) | 4.40 |
| Length (mm) | 5.54 |
| Width (mm) | 4.40 |
| Thickness (mm) | 2.00 |
| Corner Radius (mm) | 0.30 |
| Shape | Irregular |
| Hole Diameter (mm) | 2.30 |
| Relief Angle | 7 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | SM-E |
| Drill Style | DRV |
| Series | DRV Magic Drill |
