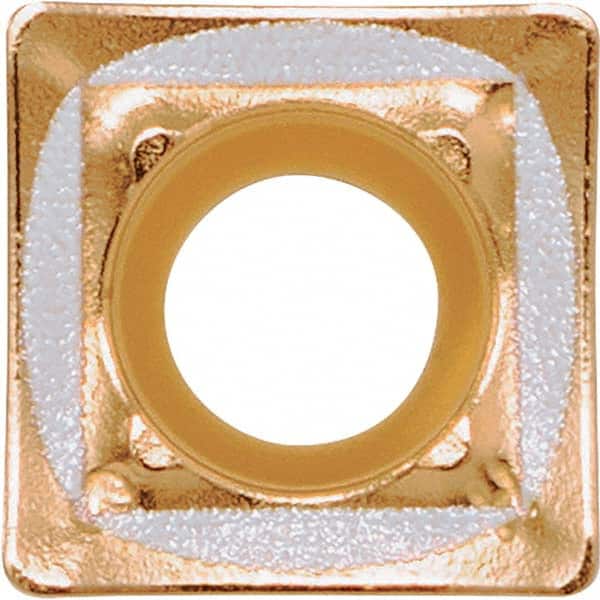

Kyocera - SCMT090405 GH-E Grade CA415D Carbide Indexable Drill Insert
Item #: 10626786
Brand: Kyocera
Model #: 8861066
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 090405 |
| Material | Carbide |
| Manufacturer's Grade | CA415D |
| Inscribed Circle (mm) | 9.10 |
| Length (mm) | 9.10 |
| Width (mm) | 9.10 |
| Thickness (mm) | 4.10 |
| Corner Radius (mm) | 0.50 |
| Shape | Square |
| Hole Diameter (mm) | 4.00 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | GH-E |
| Drill Style | DRV |
| Series | DRV Magic Drill |
