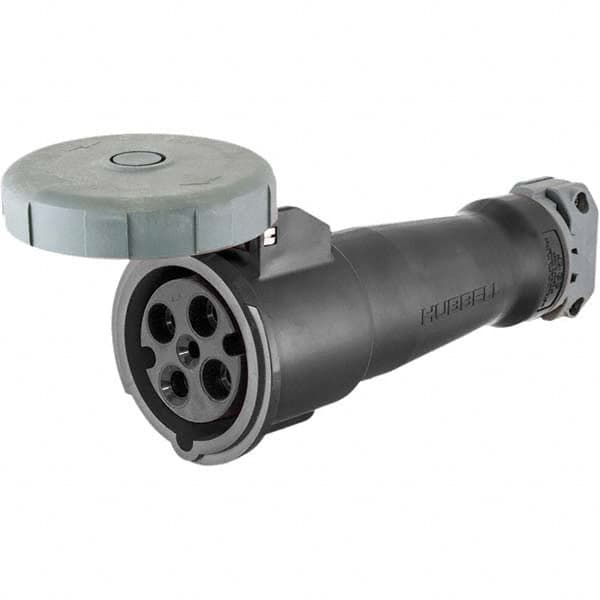

Hubbell Wiring Device-Kellems - Pin & Sleeve Plugs & Connectors Connector Type: Connector Pin Configuration: 2
Item #: 74327404
Brand: Hubbell Wiring Device-Kellems
Model #: HBL460C5W
Product Specifications
Pin & Sleeve Plugs & Connectors; Connector Type: Connector ; Pin Configuration: 2 ; Number of Poles: 3 ; Amperage: 60 ; Voltage: 600 VAC ; Maximum Cord Grip Diameter (Decimal Inch): 1.4500
| Connector Type | Connector |
| Pin Configuration | 2 |
| Number of Poles | 3 |
| Amperage | 60 |
| Voltage | 600 VAC |
| Maximum Cord Grip Diameter (Decimal Inch) | 1.4500 |
| Grounding Style | Self-Grounding |
| Minimum Cord Grip Diameter (Decimal Inch) | 1/2 |
| Resistance Features | Watertight |
| Color | Gray; Black |
| Overall Length (Decimal Inch) | 11.1500 |
| Number of Phases | 3 |
| Ingress Protection Rating | IP69k |
| Material | Nylon |
| Standards Met | UL Classified to IEC 603091 IEC 60309-2; UL Listed; CSA Certified |
