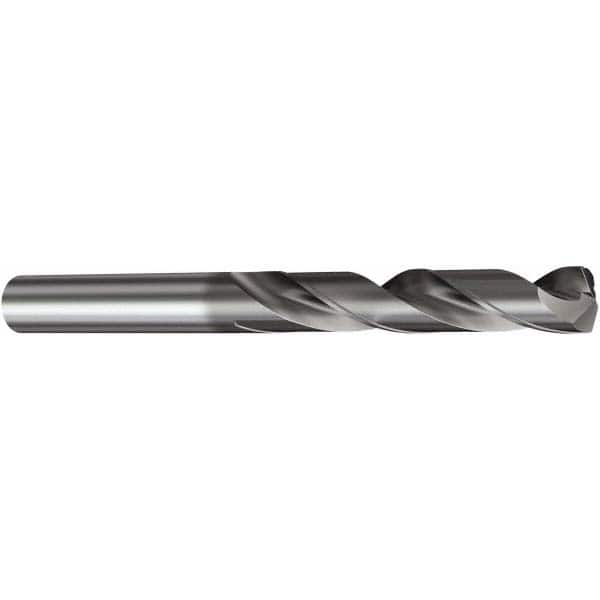

Sandvik Coromant - 9.7mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 49400005
Brand: Sandvik Coromant
Model #: 6241437
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3819 |
| Drill Bit Size (mm) | 9.70 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 1.8504 |
| Overall Length (Decimal Inch) | 3.5039 |
| Flute Length x Diameter Ratio | 3.14433xD |
| Point Type | Split Point |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Specification Designation | ANSI; DIN; ISO |
| Maximum Drilling Depth (Decimal Inch) | 1.2008 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.5748 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (Decimal Inch) | 0.0550 |
| Drill Tip Finish/Coating | TiAlN |
| Number of Margins | 0.000 |
| Specification Number | DIN 1835A; DIN 6535HA; DIN 6537K |
| Drill Bit Grade | High Performance |
| Series/List | CoroDrill 460 |
| Length Type | Regular |
