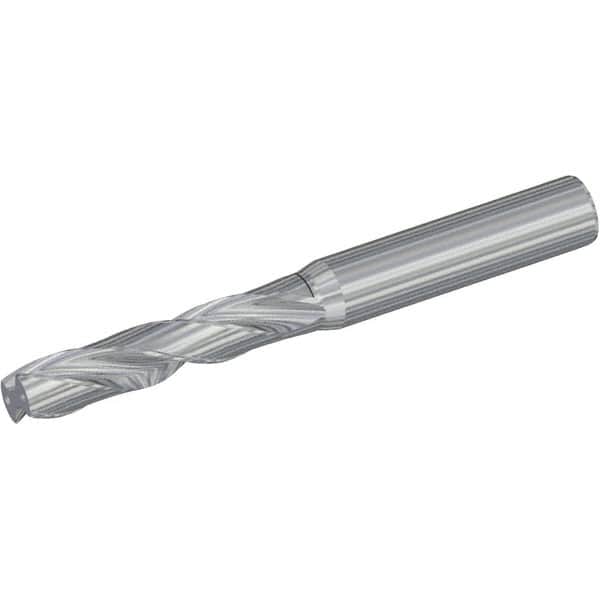

Kennametal - 11.11mm 180° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 76293877
Brand: Kennametal
Model #: 3894841
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4374 |
| Drill Bit Size (mm) | 11.11 |
| Drill Point Angle | 180 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 55.00 |
| Flute Length (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Flat-Bottom |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 40.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.5748 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 0.39 |
| Drill Point Length (Decimal Inch) | 0.0154 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0003 to +0.0010 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6535 |
| Series/List | B707A-FBS |
| Length Type | Stub |
