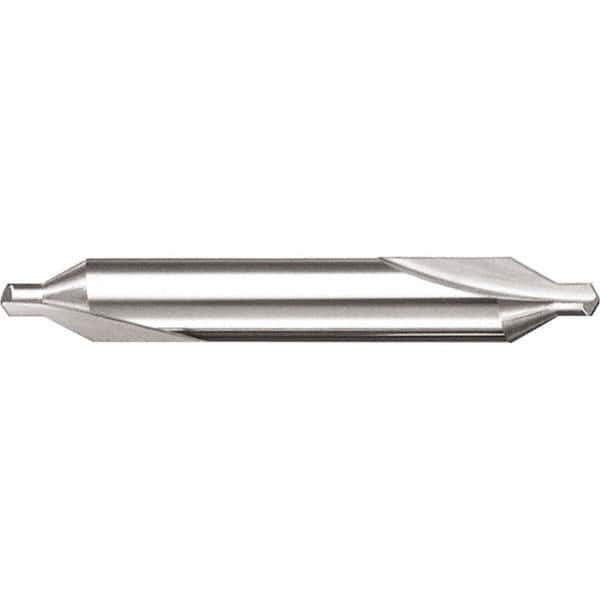

SGS - Metric Plain Cut 60° Incl Angle Solid Carbide Combo Drill & Countersink
Item #: 66541970
Brand: SGS
Model #: 67017
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Included Angle | 60 |
| Trade Size | Metric |
| Body Diameter (mm) | 6.30 |
| Body Diameter (Decimal Inch) | 0.2480 |
| Overall Length (mm) | 45.00 |
| Overall Length (Decimal Inch) | 1.7717 |
| Drill Point Diameter (Decimal Inch) | 0.0984 |
| Drill Point Diameter (mm) | 2.50 |
| Finish/Coating | Bright |
| End Type | Double |
| Cutting Direction | Right Hand |
| Cutting Edge Style | Plain |
| Drill Point Angle | 118 |
| Countersink Application | Countersinking; Drilling |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Cast Iron; Composites; High Temperature Alloys; Non-Ferrous Metals; Plastics; Stainless Steel; Steel; Titanium |
| Series/List | 301M |
