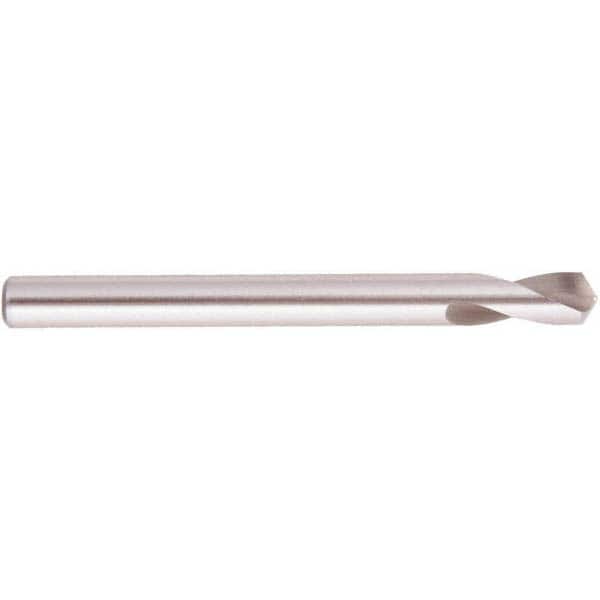

National Twist Drill - 3/16" Body Diam, 120°, 2-7/16" OAL, Cobalt Spotting Drill
Item #: 58815937
Brand: National Twist Drill
Model #: 027499AW
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bronze oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Product Specifications | |
---|---|
Body Diameter (Inch) | 3/16 |
Body Diameter (Decimal Inch) | 0.1875 |
Drill Point Angle | 120 |
Spotting Drill Material | Cobalt |
Spotting Drill Finish/Coating | Bronze Oxide |
Overall Length (Inch) | 2-7/16 |
Flute Length (Decimal Inch) | 0.5900 |
Shank Diameter (Decimal Inch) | 0.1875 |
Cutting Direction | Right Hand |
Tool Application | Centering; Chamfering; Drilling; Spotting |
Insertable Cutter Head | No |
Tapered | No |
