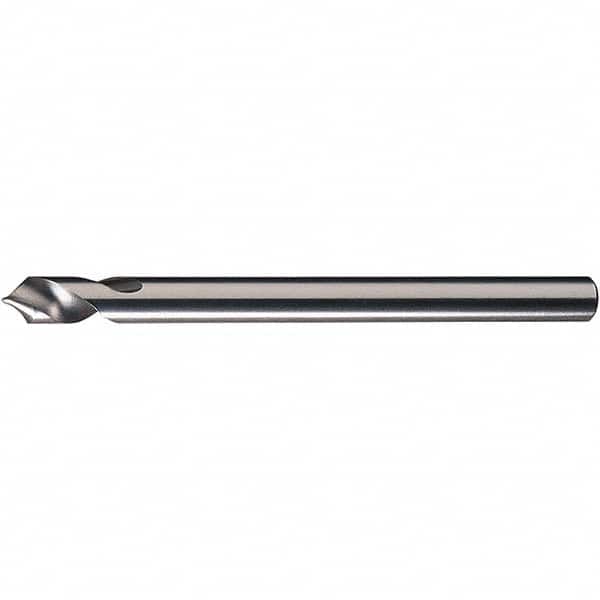

Chicago-Latrobe - 1/2" Body Diam, 90°, 6" OAL, High Speed Steel Spotting Drill
Item #: 93075703
Brand: Chicago-Latrobe
Model #: 49498
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 1/2 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Drill Point Angle | 90 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (Inch) | 6 |
| Flute Length (mm) | 38.10 |
| Flute Length (Decimal Inch) | 1.5000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.7000 |
| Length Designation | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Material Application | Alloy Steel; Carbon Steel; Tool Steel |
| Series/List | 90SPR |
