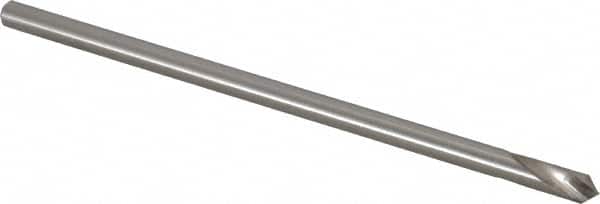

Magafor - 6mm Body Diam, 90°, 5-33/64" OAL, Cobalt Spotting Drill
Item #: 78241742
Brand: Magafor
Model #: 81197060000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 6.00 |
| Body Diameter (Decimal Inch) | 0.2362 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Cobalt |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (Inch) | 5-33/64 |
| Flute Length (mm) | 20.00 |
| Flute Length (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 6.0000 |
| Length Designation | Long |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Chamfering; Drilling; Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
| Series/List | 197 |
