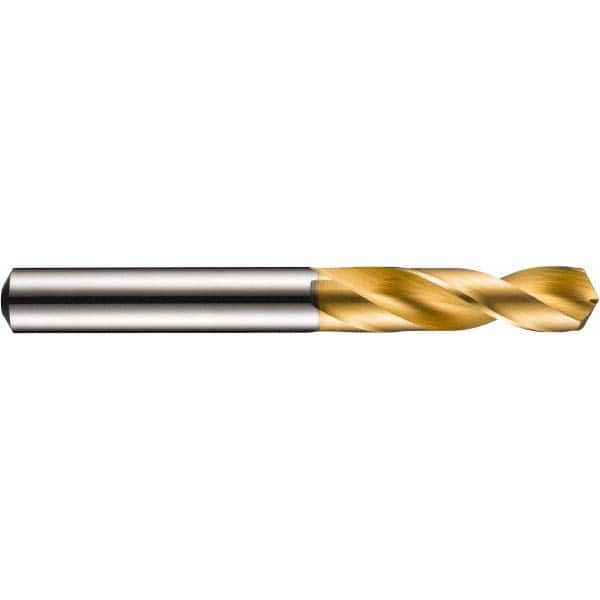

DORMER - 13mm 130° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 65665200
Brand: DORMER
Model #: 0116005
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Bit Size (mm) | 13.00 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 51.00 |
| Flute Length (Decimal Inch) | 2.0094 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0188 |
| Flute Length x Diameter Ratio | 2.5xD |
| Point Type | CDX |
| Shank Diameter (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.018 |
| Specification Number | DIN 6539 |
| Web Thinning | Web-Thinned |
| Series/List | R520 |
| Length Type | Stub |
