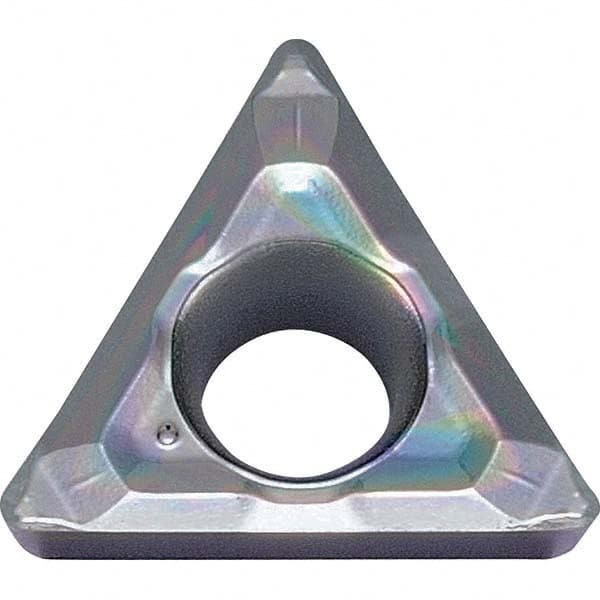

Kyocera - TPGT2205 AP Grade PDL010 Diamond-Like Carbon (DLC) Turning Insert
Item #: 11383718
Brand: Kyocera
Model #: 8862042
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 2205 |
| Material | Diamond-Like Carbon (DLC) |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | PDL010 |
| Coating | Diamond-Like Carbon (DLC) |
| Chip Breaker | AP |
| Hole Diameter (Decimal Inch) | 0.1299 |
| ISO Number | TPGT110302AP |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | DLC |
| Manufacturers Catalog Number | TPGT2205AP PDL010 |
| Primary Workpiece Material | N |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | TPGT |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Boring, Internal Facing, Copying, Back Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
