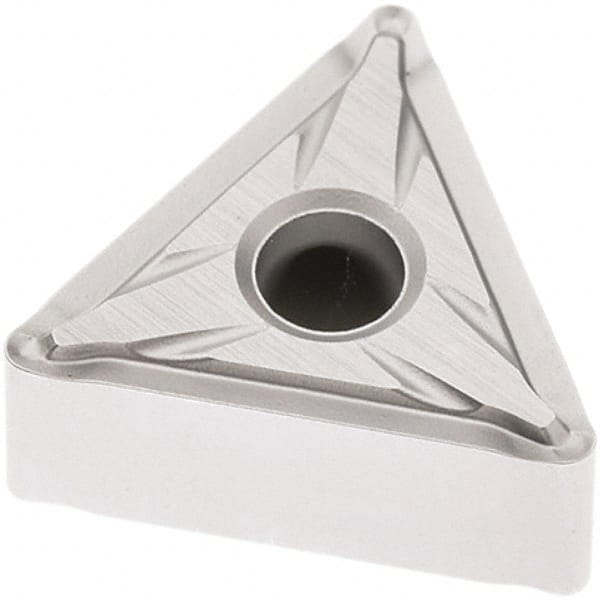

Seco - TNMG331 FF2 Grade TP2501 Carbide Turning Insert
Item #: 43018209
Brand: Seco
Model #: 02960030
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TP2501 |
| Coating | Al2O3 |
| Chip Breaker | FF2 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material | Carbide |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 1/64 |
| Coating Process | Duratomic |
| Coating | Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Material | Carbide |
| Manufacturer's Grade | TP2501 |
| Insert Style | TNMG |
| Insert Size | 331 |
| Thickness (Decimal Inch) | 0.1875 |
| Shape | Triangle |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating Process | Duratomic |
| Coating | Al2O3 |
| Thickness (Decimal Inch) | 0.1875 |
| Material | Carbide |
| Manufacturer's Grade | TP2501 |
| Insert Style | TNMG |
| Insert Size | 331 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Shape | Triangle |
