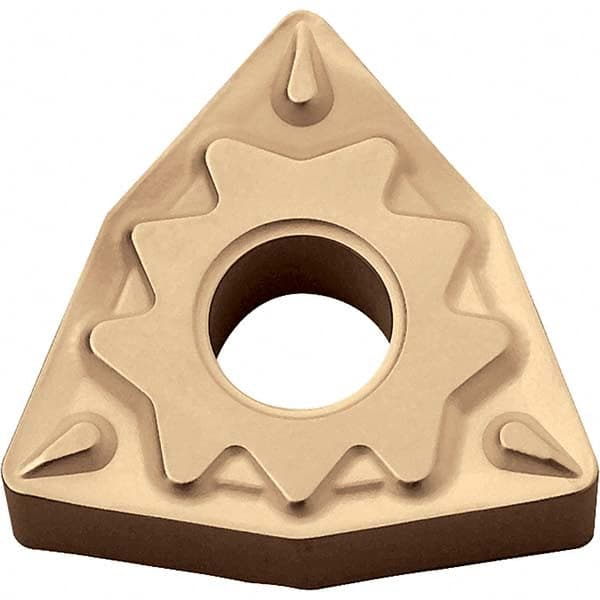

Kyocera - WNMG332 HQ Grade CCX Cermet Turning Insert
Item #: 96190624
Brand: Kyocera
Model #: 8863189
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 332 |
| Material | Cermet |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CCX |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNMG060408HQ |
| Rake | Negative |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG332HQ CCX |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | WNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Trigon |
