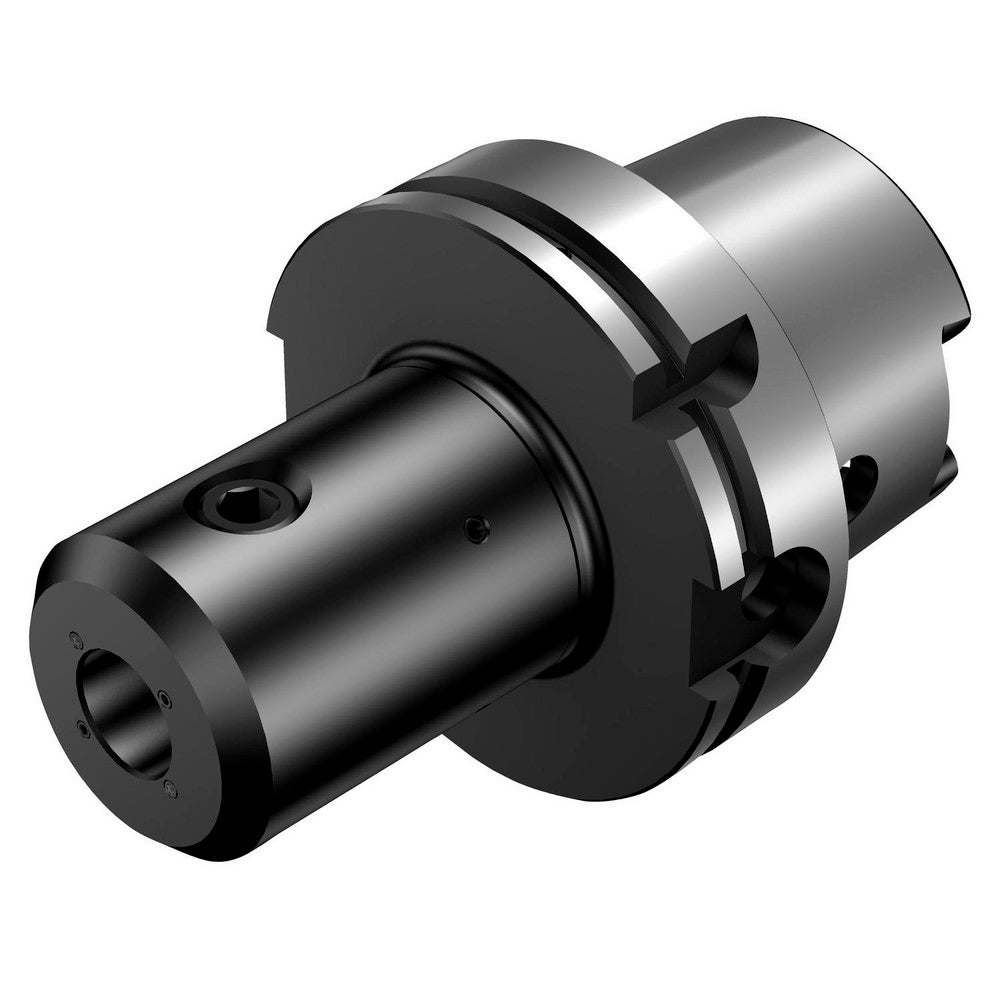

End Mill Holder: HSK63A Taper, Taper Shank, 16.00 mm Hole Dia
Item #: 01776749
Brand: Sandvik Coromant
Model #: 8330724
Product Specifications
| Shank Type | Taper |
| Modular Connection Size | HSK63A |
| Overall Length (mm) | 120 |
| Overall Length (Decimal Inch) | 4.7240 |
| Taper Size | HSK63A |
| Hole Diameter (Mm) ( - 0 Decimals) | 16.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.4961 |
| Nose Diameter (Mm) ( - 2 Decimals) | 38.00 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Through Coolant | Yes |
| Machine Side Connection Type | Taper |
| Machine Side Connection Size | 63 mm |
| Tooling Side Connection Type | Weldon |
| Maximum RPM | 20500.000 |
| Includes | Adapter |
| For Use With | Milling Cutter |
| Series | HSK |
| UNSPSC Code | 27112807 |
