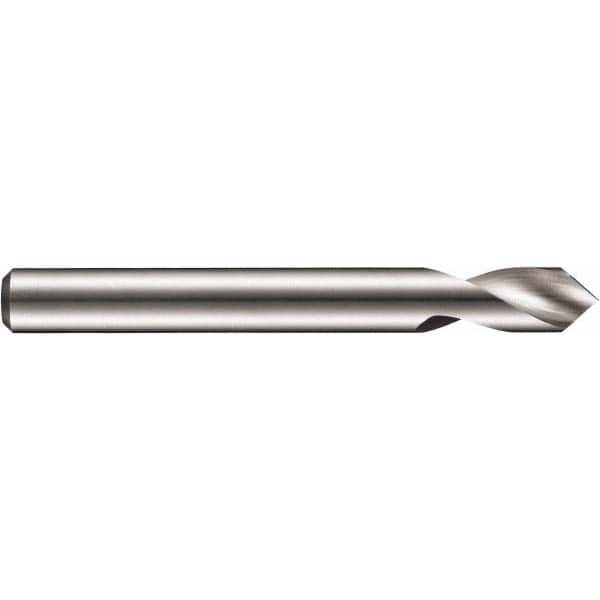

DORMER - 5mm Body Diam, 90°, 62mm OAL, Solid Carbide Spotting Drill
Item #: 65689143
Brand: DORMER
Model #: 0217993
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 5.00 |
| Body Diameter (Decimal Inch) | 0.1969 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Solid Carbide |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (mm) | 62.00 |
| Flute Length (mm) | 16.00 |
| Flute Length (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 5.0000 |
| Number of Flutes | 2 |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys; Stainless Steel; Steel; Structural Steel |
| Material Application2 | Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloys |
| Series/List | R123 |
