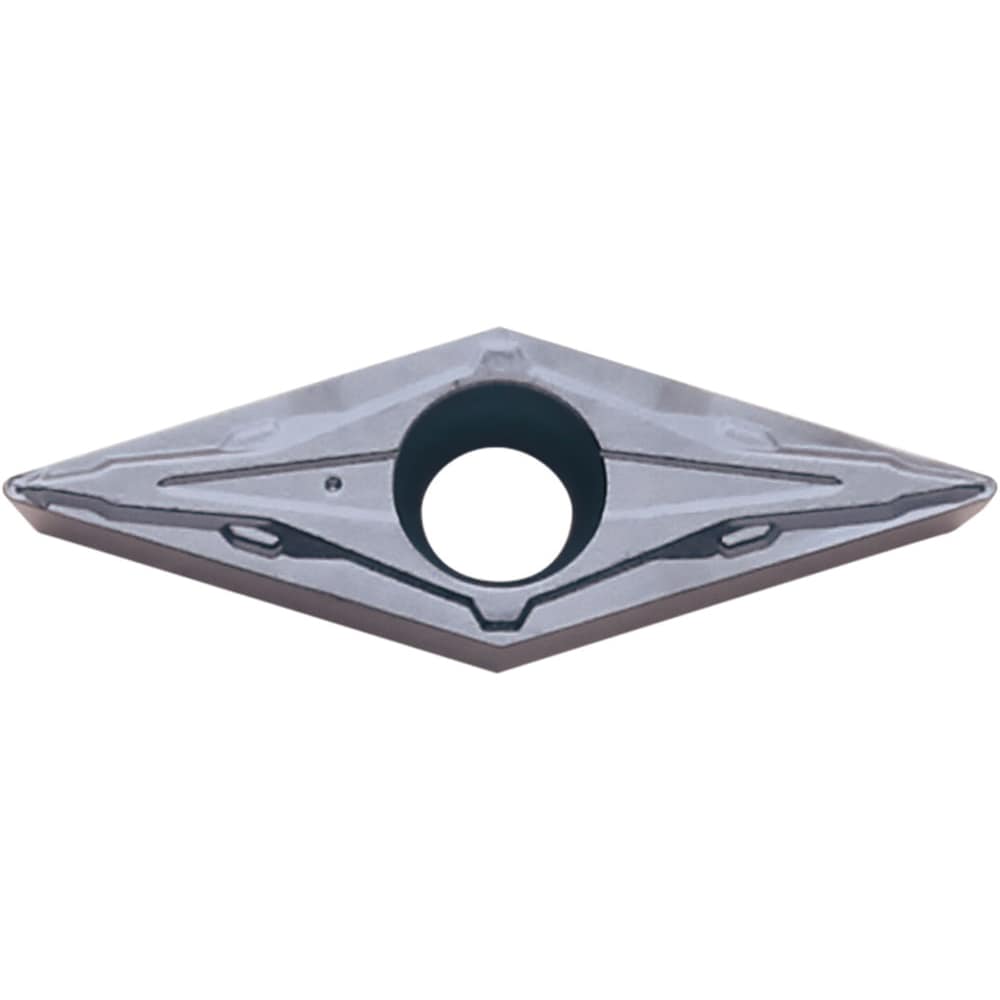

Turning Insert: VCMT160404PP PR1535, Carbide
Item #: 28459741
Brand: Kyocera
Model #: TLC07702
Product Specifications
| ANSI Insert Code | VCMT331 |
| ISO Insert Code | VCMT160404 |
| Relief Angle | 7 |
| Insert Style | VCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | PR1535 |
| Coating/Finish | MEGACOAT NANO |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.4360 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.3080 |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | VCMT160404PP |
| Manufacturers Catalog Number | TLC07702 |
| Material Grade | S20; S30; M40; M30 |
| Coating Classification | PVD |
| Chip Breaker | PP |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | VCMT331PPPR1535 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
