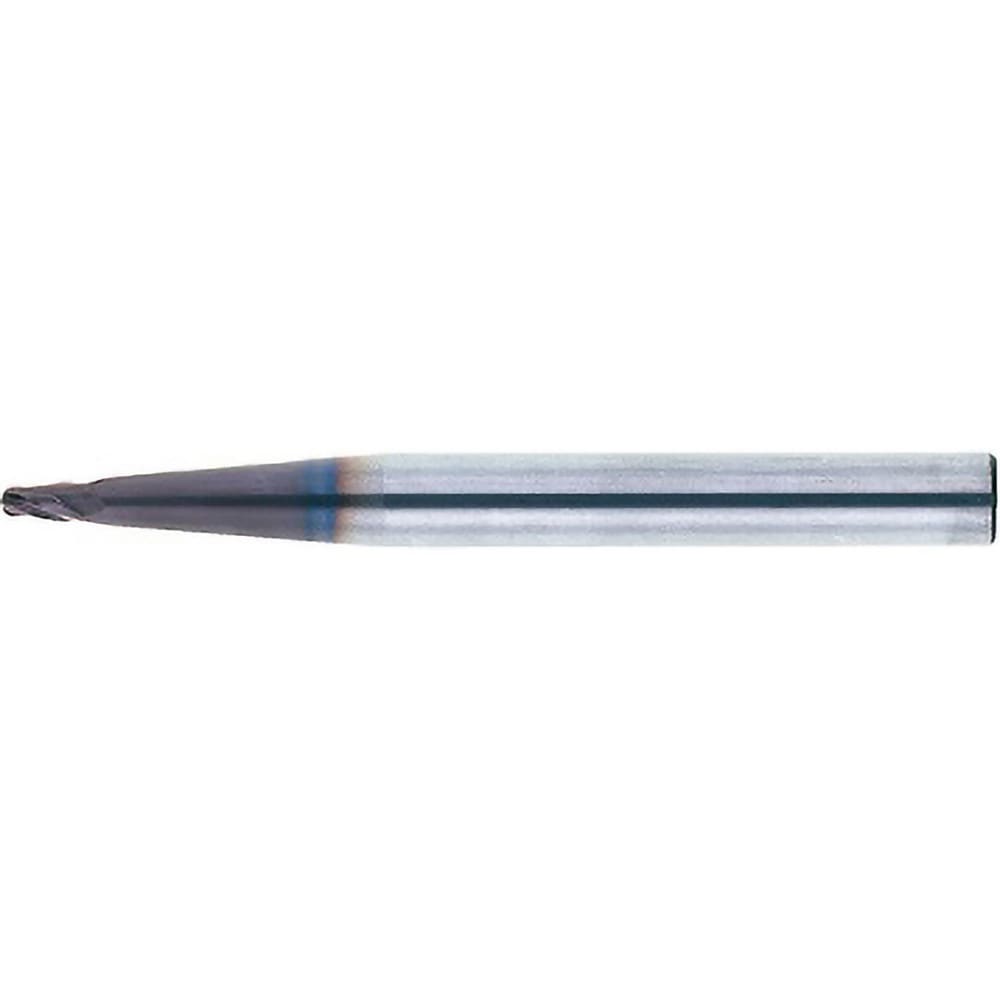

Tapered End Mill: 7 deg Angle per Side, 1.00 mm Small Dia, 7.00 mm LOC, 4 Flute, Ball End
Item #: 64377831
Brand: Mitsubishi
Model #: 207191
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Length of Cut (mm) | 7.00 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 60.00 |
| Centercutting | No |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Nose Radius (mm) | 0.50 |
| Nose Radius (Decimal Inch) | 0.0197 |
| Small End Diameter (Decimal Inch) | 0.0394 |
| Small End Diameter (mm) | 1.00 |
| Large End Diameter (mm) | 1.00 |
| Large End Diameter (Decimal Inch) | 0.0394 |
| Helix Angle | 30 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; High Temperature Alloy; Super Alloys & Titanium |
| Secondary Workpiece Material Code | P; S; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2756 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 4 |
| Included Angle Degree | 14 |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Length of Cut (mm) | 7.00 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Helical |
| Overall Length (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 60.00 |
| Centercutting | No |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Nose Radius (mm) | 0.50 |
| Nose Radius (Decimal Inch) | 0.0197 |
| Small End Diameter (Decimal Inch) | 0.0394 |
| Small End Diameter (mm) | 1.00 |
| Large End Diameter (mm) | 1.00 |
| Large End Diameter (Decimal Inch) | 0.0394 |
| Helix Angle | 30 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; High Temperature Alloy; Super Alloys & Titanium |
| Secondary Workpiece Material Code | P; S; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2756 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 4 |
| Included Angle Degree | 14 |
| UNSPSC Code | 27112803 |
| MSC Part # | 64377831 |
| Mfr Part # | 207191 |
| Country of Origin Country of Origin is subject to change | Japan |
