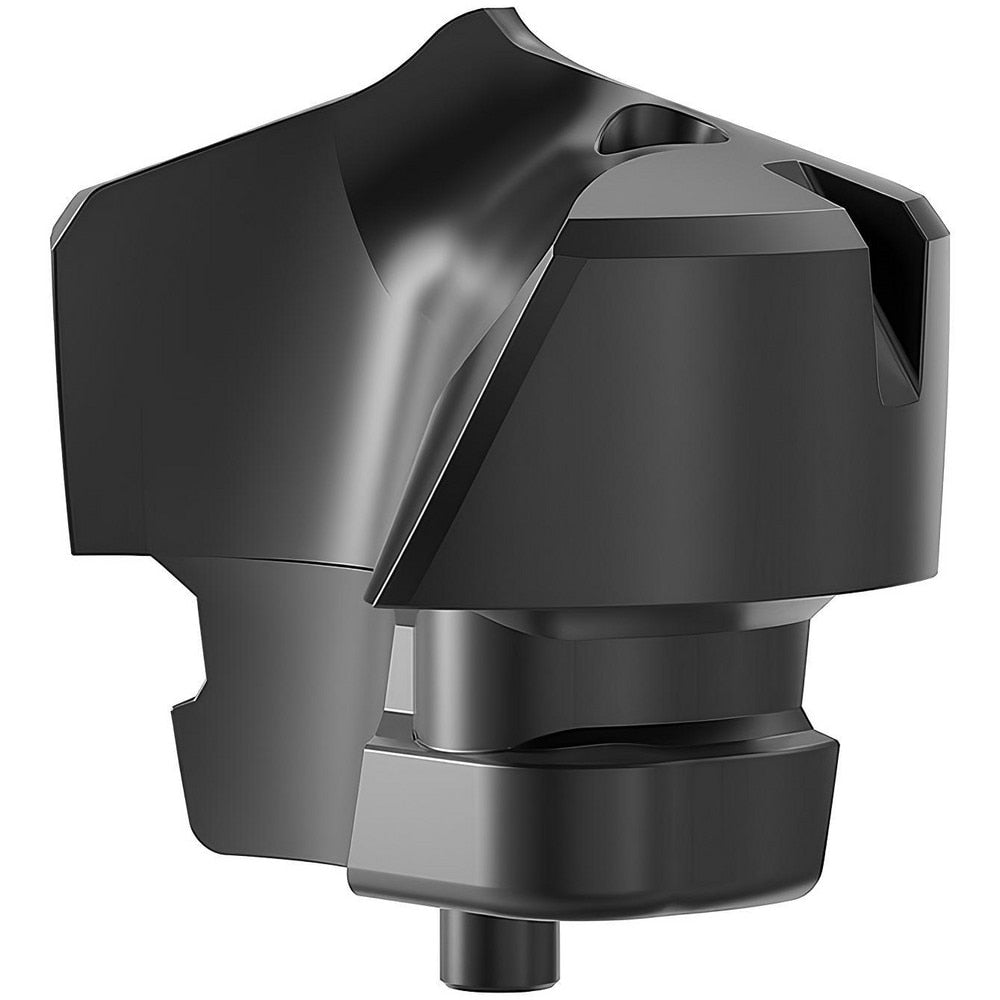

Replaceable Drill Tips: KTFST05938HPC KC7410, 0.5625" Dia, 14.29 mm Dia, 140 deg Point, KC7410
Item #: 38309035
Brand: Kennametal
Model #: 6370998
Product Specifications
| Cutting Diameter (Inch) | 19/32 |
| Cutting Diameter (Decimal Inch) | 0.5625 |
| Cutting Diameter (mm) | 14.29 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KC7410 |
| Material Grade | K15 |
| Series | KTFST |
| Coating Process | PVD |
| Insert Geometry | HPC |
| Insert Seat Size | T |
| Functional Length (Decimal Inch) | 0.2969 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Height (mm) | 11.00 |
| Overall Length/Projection (Decimal Inch) | 0.4347 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KTFST05938HPC |
| Coolant Through | Yes |
| Flute Length (mm) | 8.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | KTFST |
| UNSPSC Code | 23242105 |
| Applications | Drilling; 100160773; Drilling:Cross-HoleDrilling; Drilling:InclinedExit; ToolDimensions:2flute/4margin/coolant; Drilling:StackedPlates |
| Coating/Finish | AlCr |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
