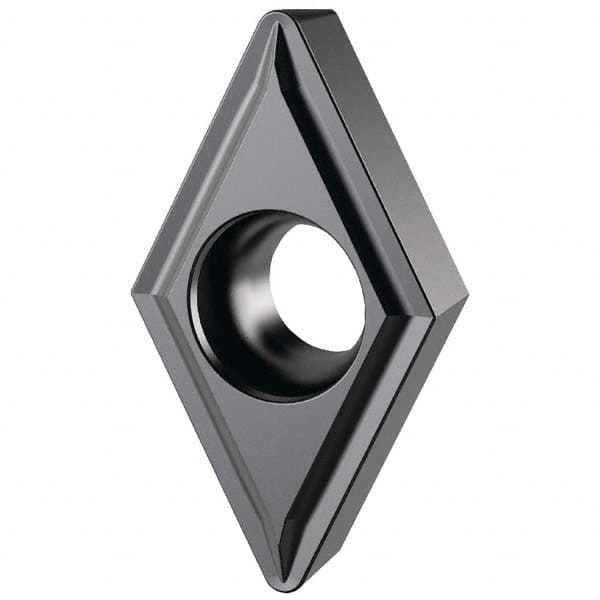

Kennametal - 3251DCGT LF Grade KCS10B Carbide Turning Insert
Item #: 12255428
Brand: Kennametal
Model #: 6686930
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 3251 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4578 |
| Inscribed Circle (Decimal Inch) | 0.1732 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.4578 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCGT11T304LF |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGT3251LF |
| Series | DCGT |
| Shape | Diamond/Rhombic |
