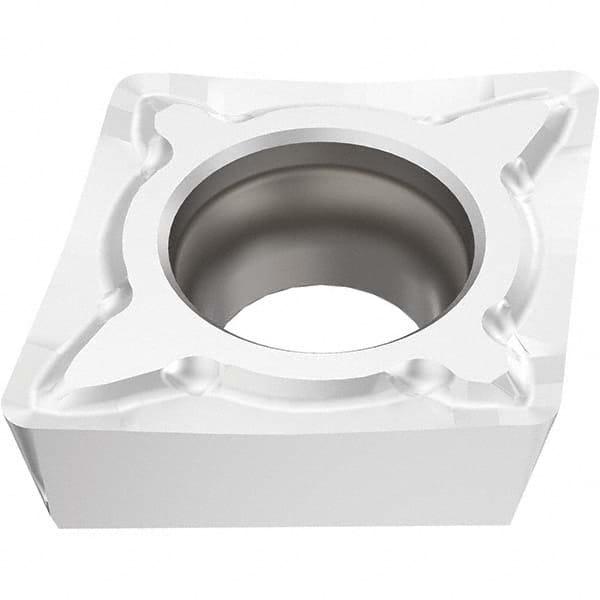

Seco - CPMT21.52 F1 Grade TP25 Carbide Turning Insert
Item #: 11882974
Brand: Seco
Model #: 03276192
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2539 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1150 |
| ISO Number | CPMT060208-F1 |
| Lead Angle | 95.000 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPMT21.52-F1 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CPMT |
| Maximum Depth of Cut (Decimal Inch) | 0.2220 |
| Cutting Edge Style | Honed |
| Shape | Diamond |
