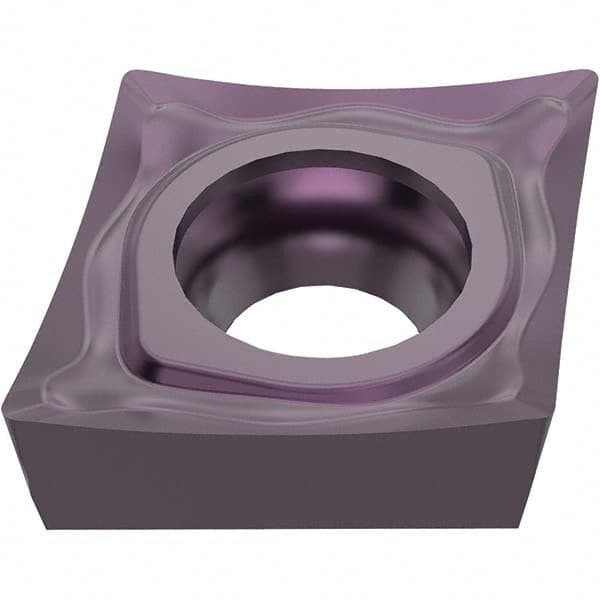

Seco - CCGT09T304 AL Grade TS2050 Carbide Turning Insert
Item #: 96216676
Brand: Seco
Model #: 03259417
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 09T304 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3807 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Manufacturer's Grade | TS2050 |
| Coating | TiAlN/TiSiN |
| Chip Breaker | AL |
| Hole Diameter (Decimal Inch) | 0.1740 |
| ISO Number | CCGT09T304F-AL |
| Lead Angle | 95.000 |
| Rake | Positive |
| Rake Angle | 21 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT09T304F-AL |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.3650 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| Shape | Diamond |
