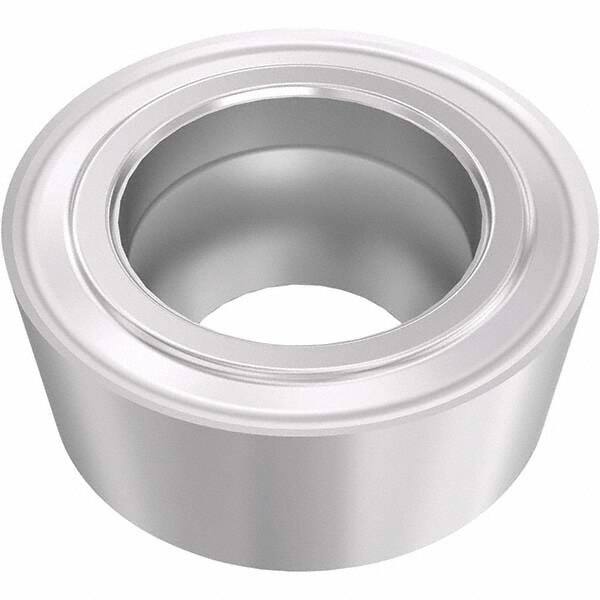

Seco - RCMT10T3M0 F1 Grade TM1501 Carbide Turning Insert
Item #: 99919672
Brand: Seco
Model #: 03276564
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3937 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | TM1501 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | F1 |
| Overall Length (Decimal Inch) | 0.3937 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| ISO Number | RCMT10T3M0 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMT10T3M0-F1 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
